Wind Profiler Radar (WPR)
Observation Data


(Version 02.0212)

Please note: If you acquire Manado-WPR data, we ask that you acknowledge us in your use of the data. This may be done by including text such as Manado-WPR data were obtained by the JEPP-HARIMAU and SATREPS-MCCOE projects promoted by JAMSTEC and BPPT under collaboration with RISH of Kyoto University and BMKG. We would also appreciate receiving a copy of the relevant publications. Thank you!
Surface Meteorological Data
Archive parameters:
CSV (Comma Separated Values) formatted data are available.
File names of CSV data are composed of date and variable abbreviations: (year)(month)(day).(variable).csv

Variables File Units Comments
Zonal wind uwnd m/s Westerly wind is positive
Meridional wind vwnd m/s Southerly wind is positive
Vertical wind wwnd m/s Upflow is positive
Echo intensity for Beam 1 pwr1 dB Arbitrary unit
Echo intensity for Beam 2 pwr2 dB Arbitrary unit
Echo intensity for Beam 3 pwr3 dB Arbitrary unit
Echo intensity for Beam 4 pwr4 dB Arbitrary unit
Echo intensity for Beam 5 pwr5 dB Arbitrary unit
Spectral width for Beam 1 wdt1 m/s Half power full width
Spectral width for Beam 2 wdt2 m/s Half power full width
Spectral width for Beam 3 wdt3 m/s Half power full width
Spectral width for Beam 4 wdt4 m/s Half power full width
Spectral width for Beam 5 wdt5 m/s Half power full width

Beam Direction
Beam No. (Az, Ze)
1 ( 0, 0)
2 ( 0, 14)
3 ( 90, 14)
4 ( 180, 14)
5 ( 270, 14)
The antenna beam is switched every FFT.

Data Format

Observation Parameters
Parameter Value
Pulse length 0.67 micro sec
Sampling interval 0.67 micro sec
Inter Pulse Period 100 micro sec
Number of coherent integrations 64
Number of incoherent integrations 14
Number of FFT points 128
Pulse compression 16 bits

September, 2008

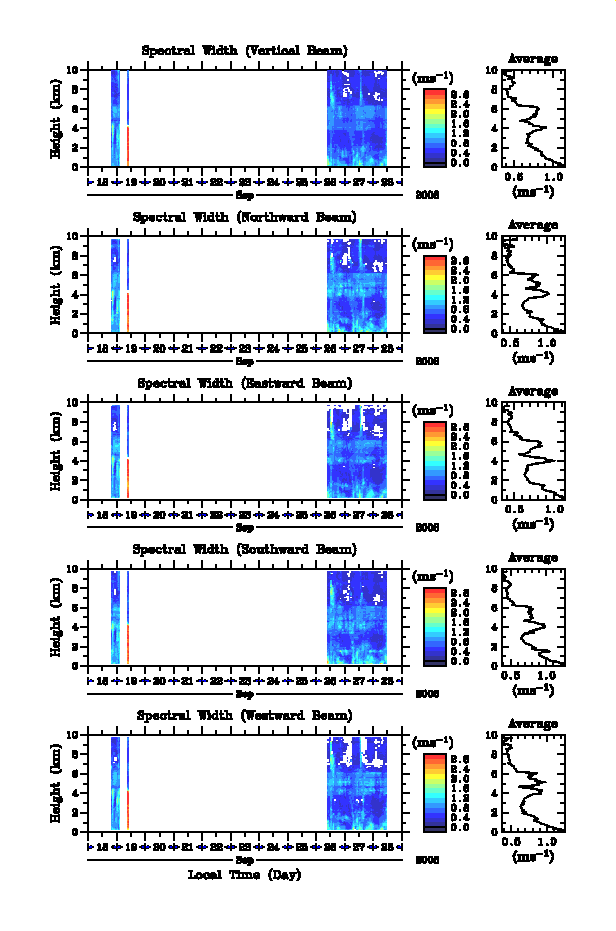

GIF File: Winds , Echo intensity , Spectral width
October, 2008

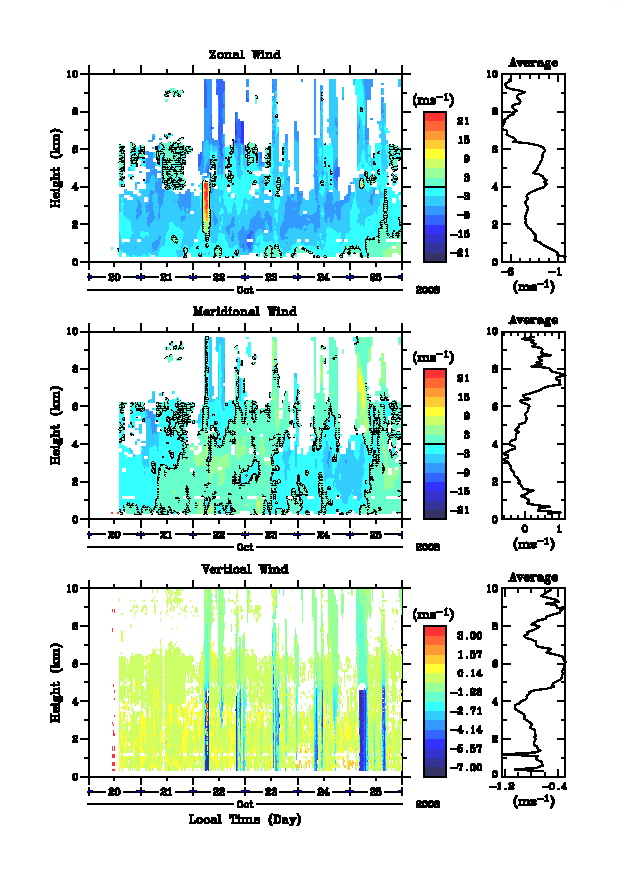

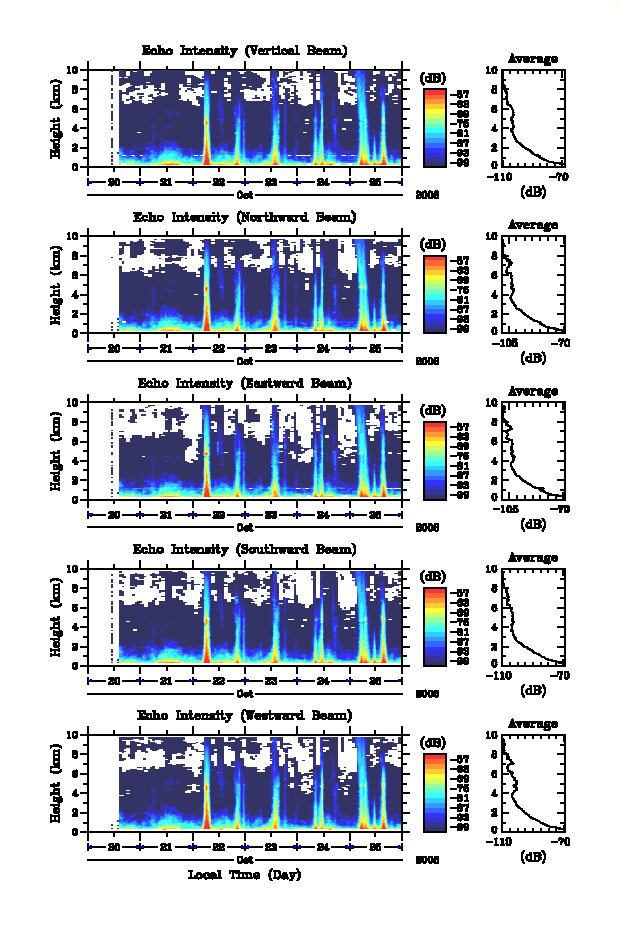

GIF File: Winds , Echo intensity , Spectral width

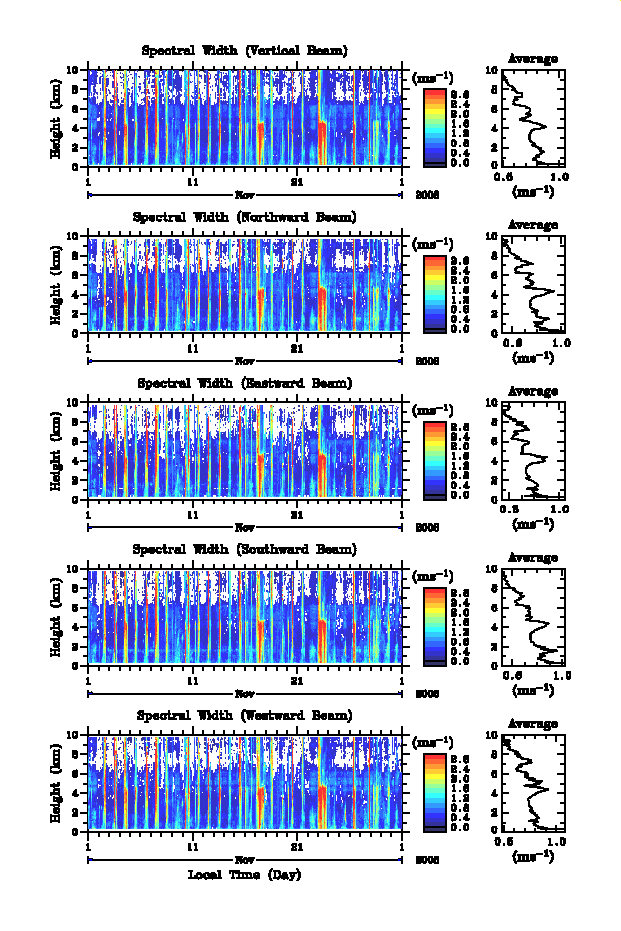

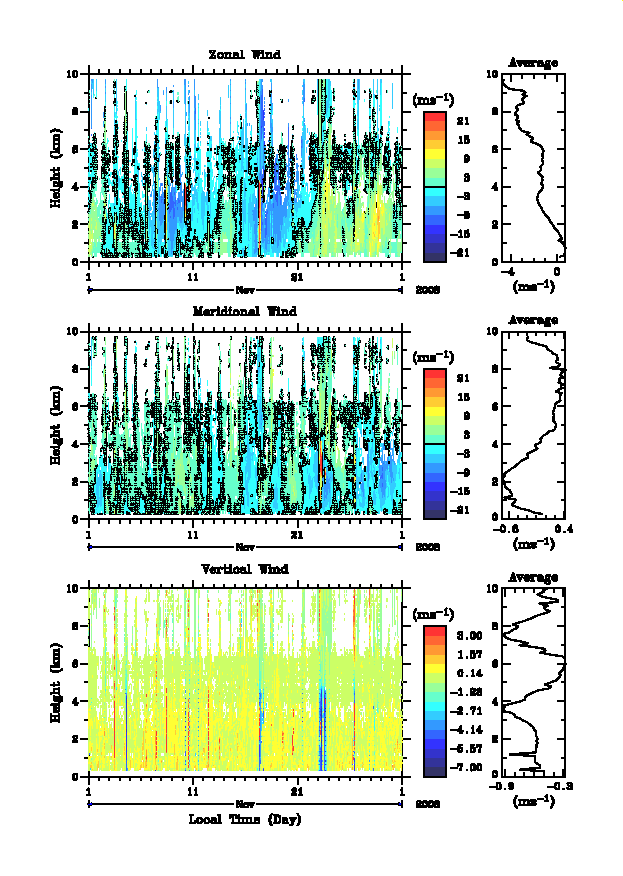

November, 2008
GIF File: Winds , Echo intensity , Spectral width

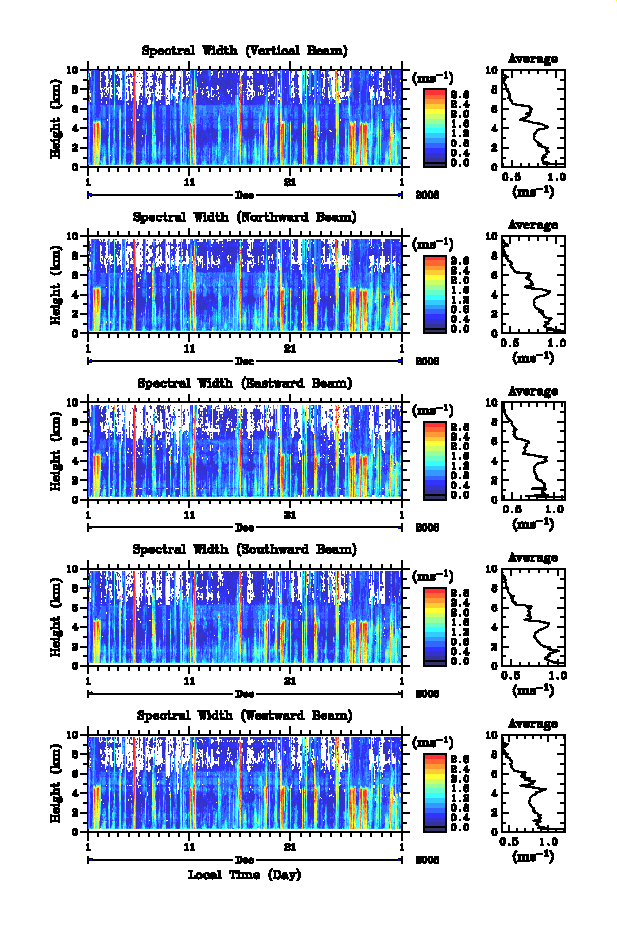

December, 2008

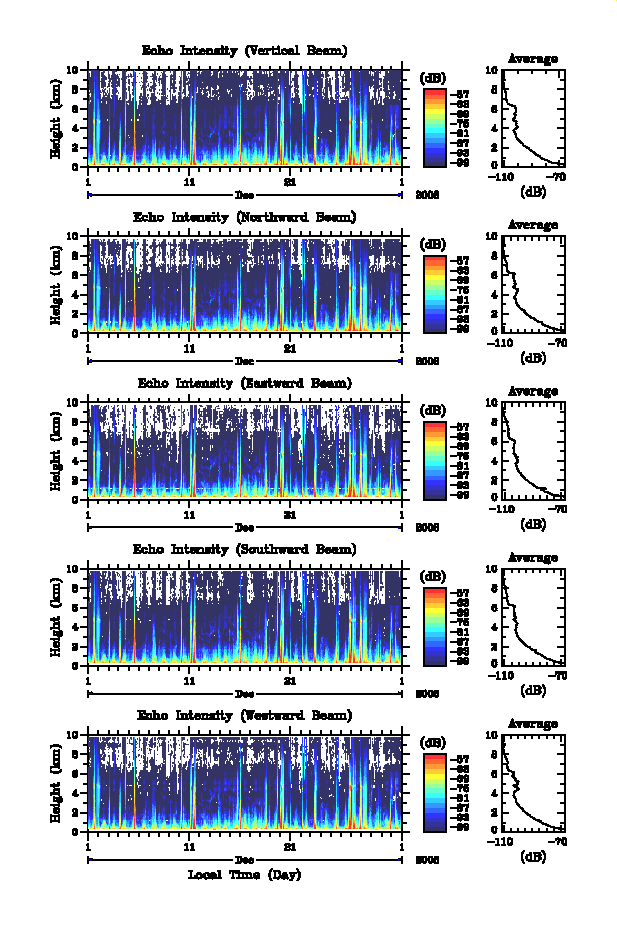

GIF File: Winds , Echo intensity , Spectral width

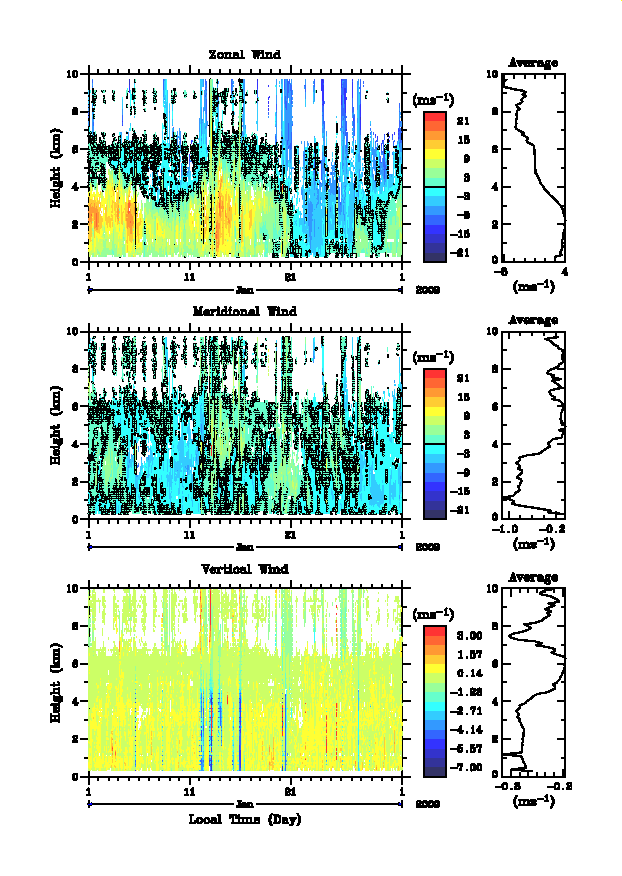

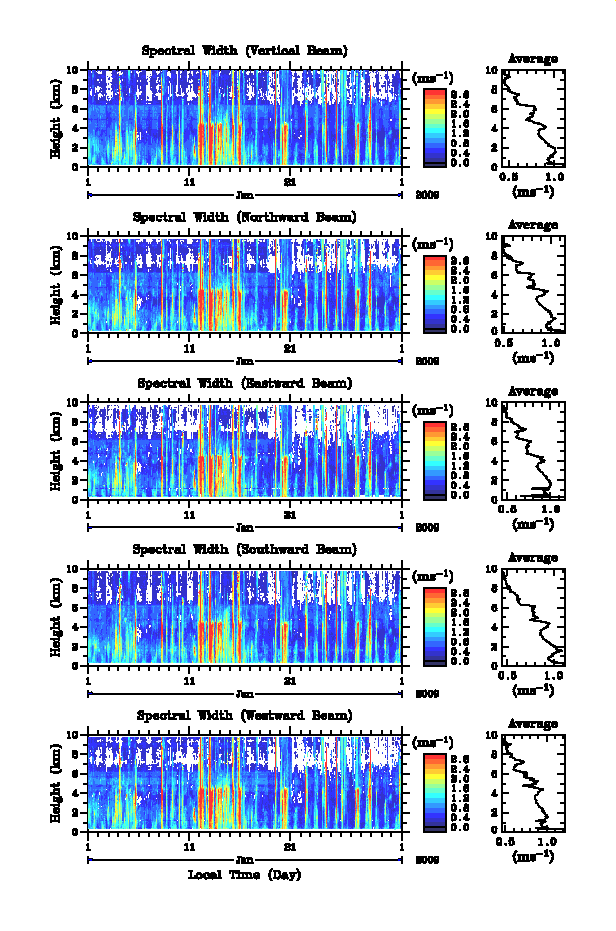

January, 2009
GIF File: Winds , Echo intensity , Spectral width

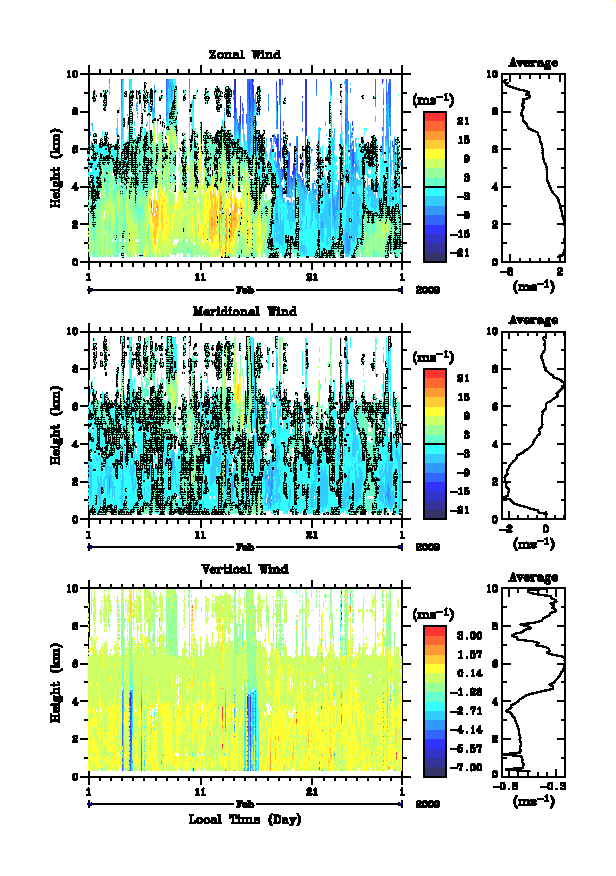

February, 2009

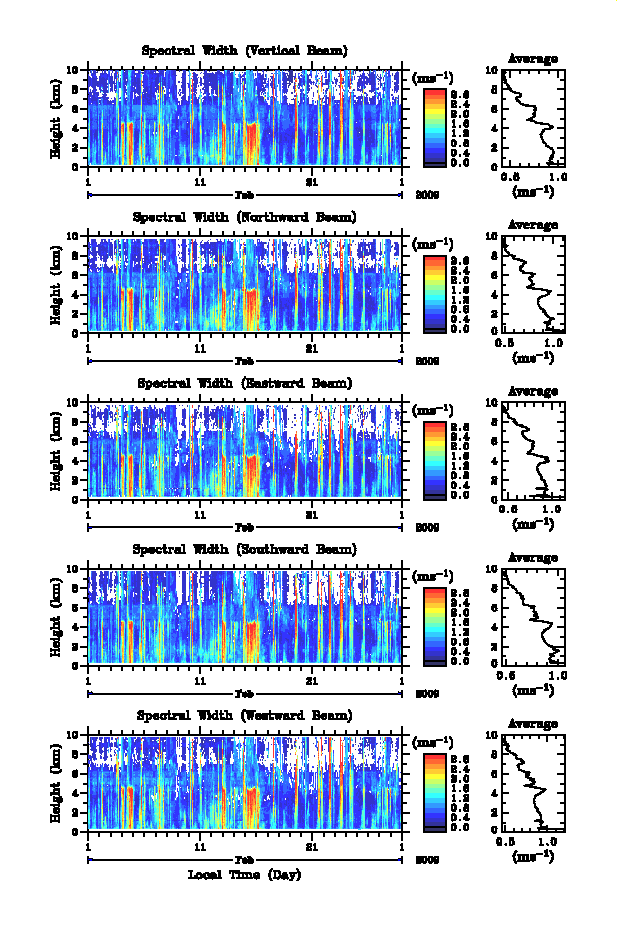

GIF File: Winds , Echo intensity , Spectral width

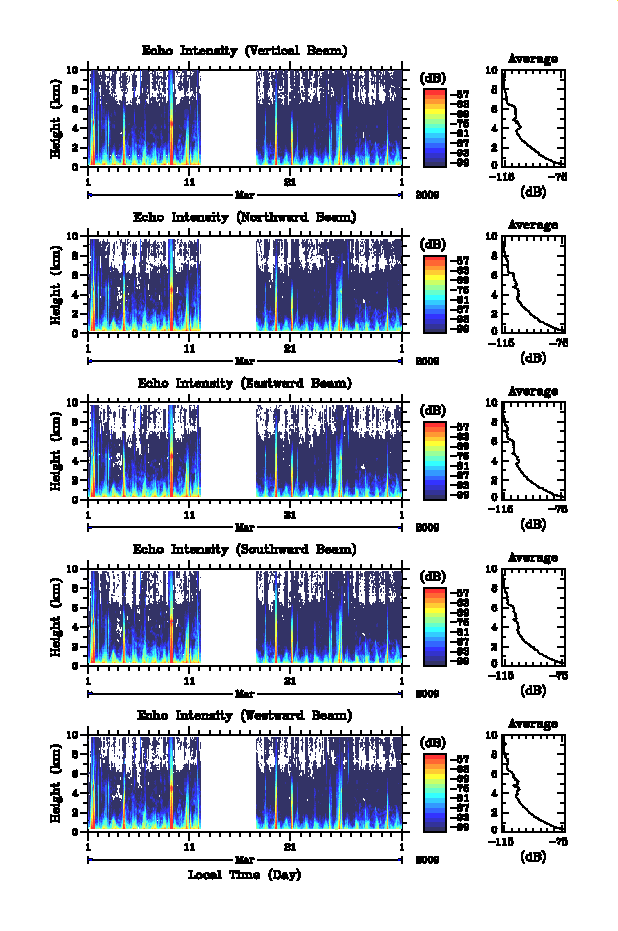

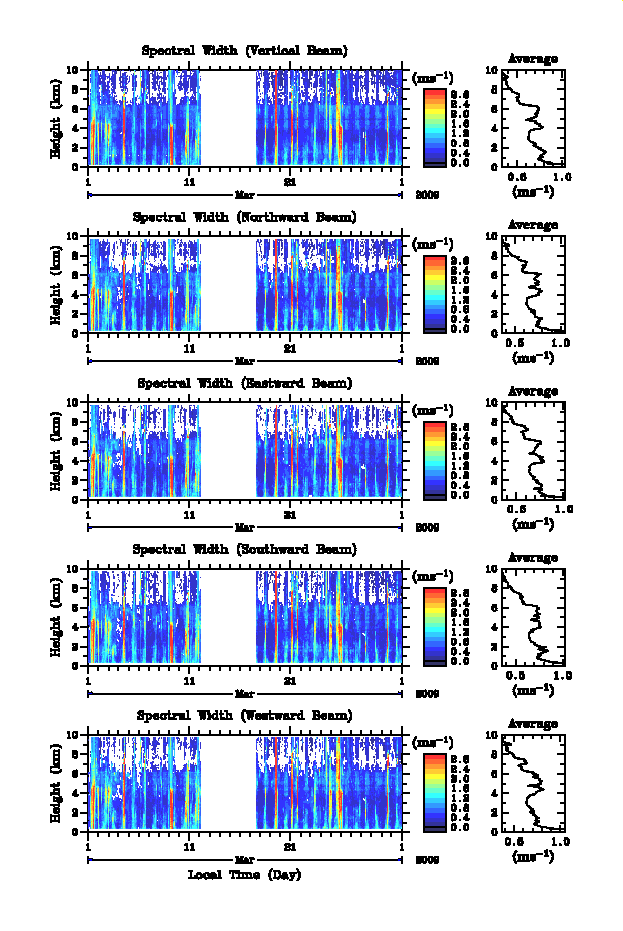

March, 2009
GIF File: Winds , Echo intensity , Spectral width
April, 2009

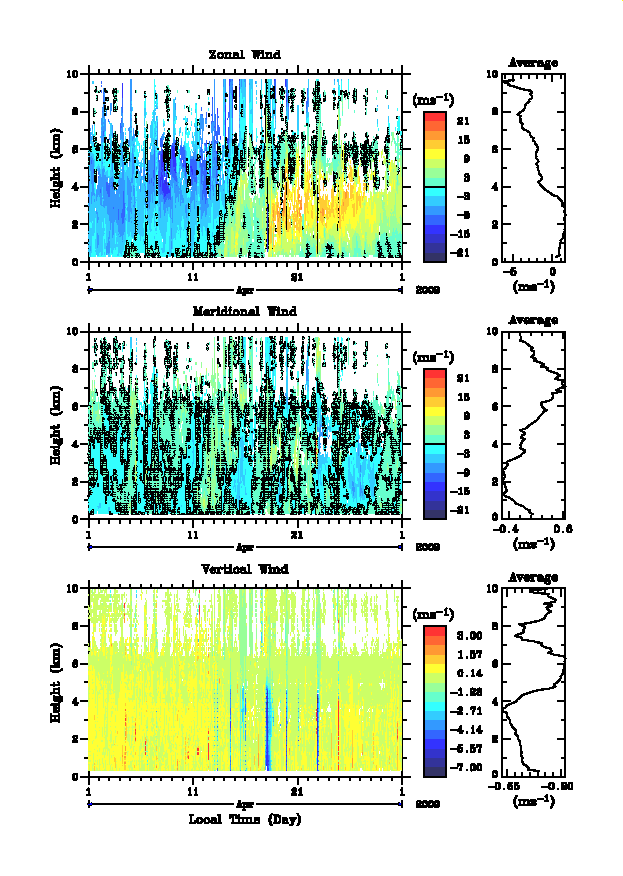

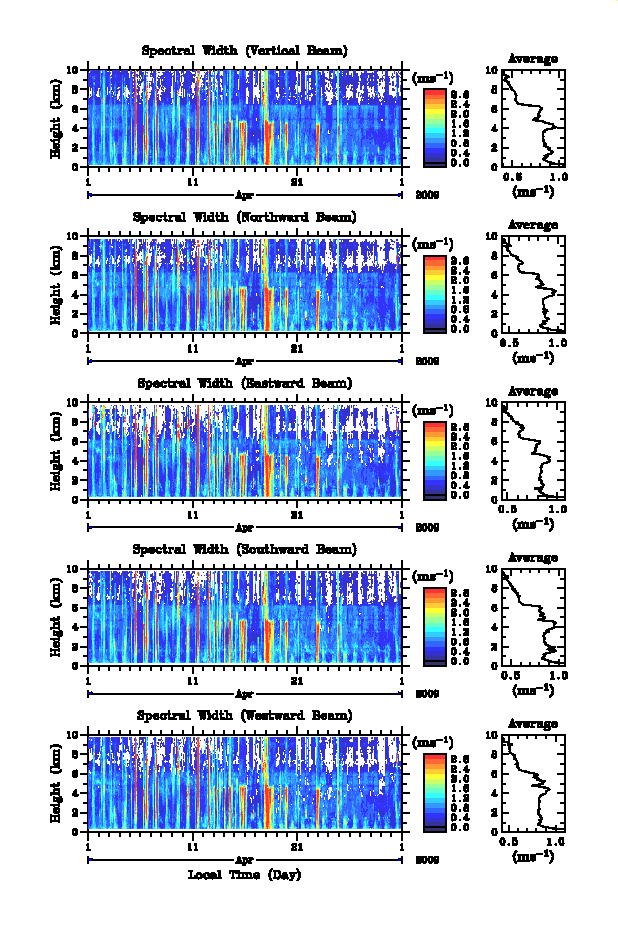

GIF File: Winds , Echo intensity , Spectral width
May, 2009

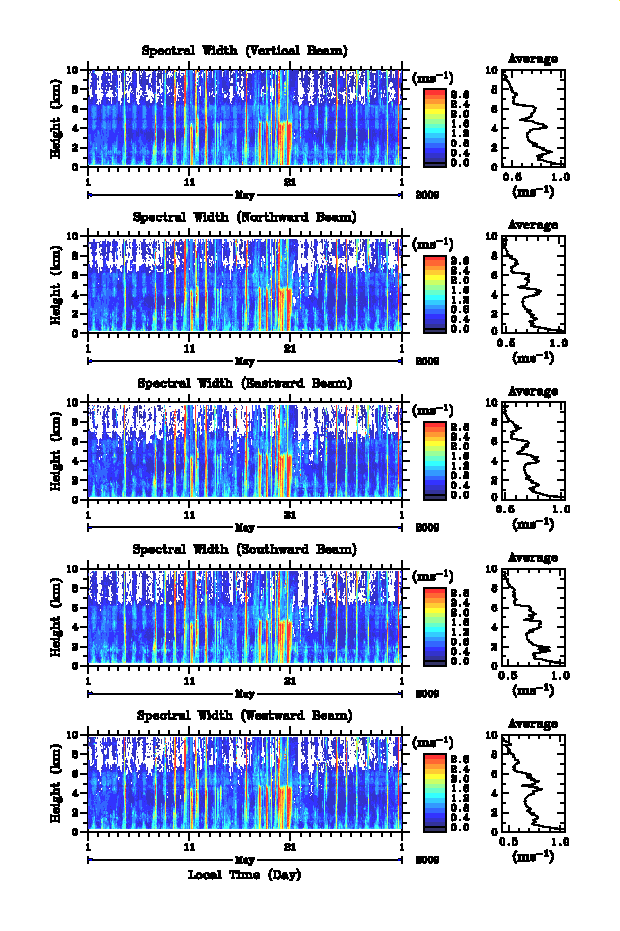

GIF File: Winds , Echo intensity , Spectral width

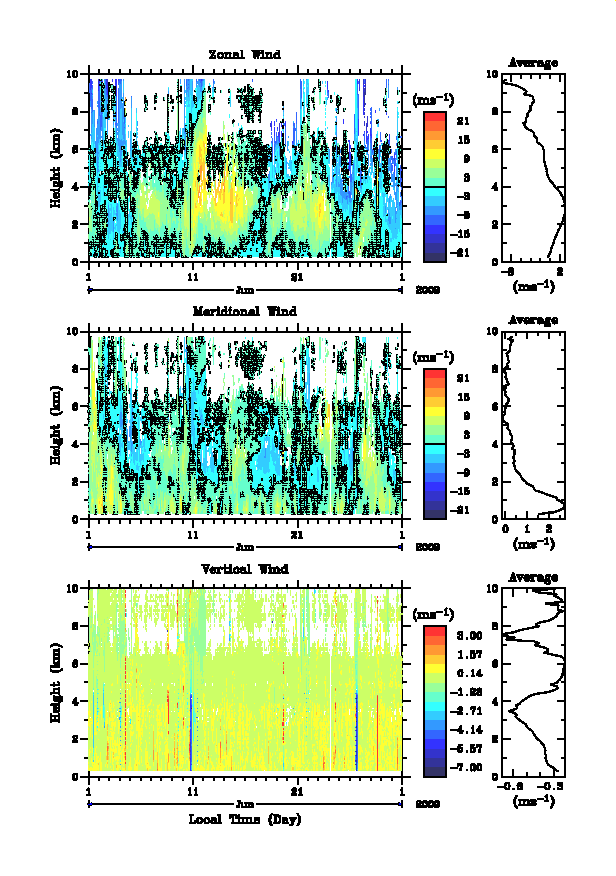

June, 2009

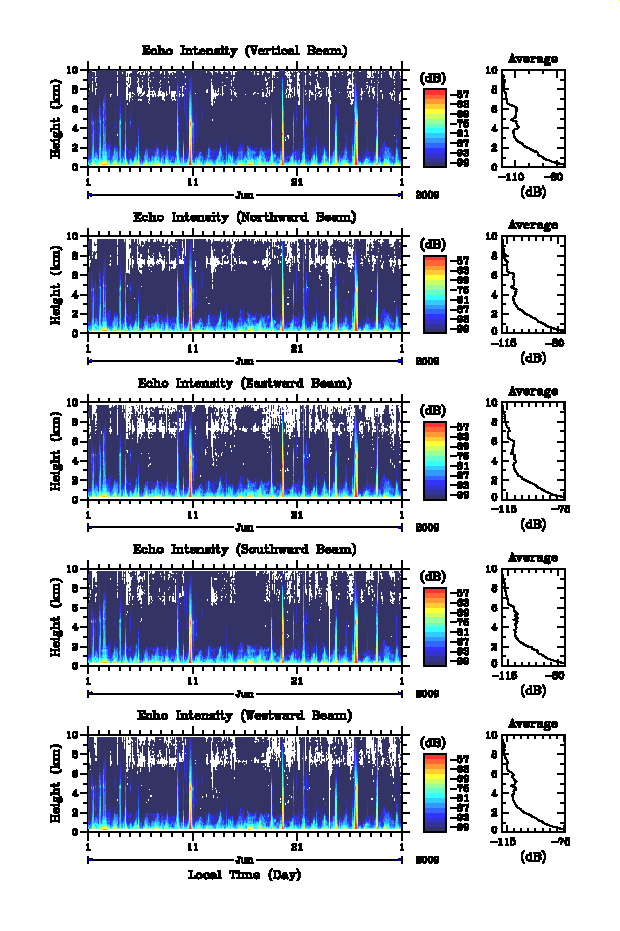

GIF File: Winds , Echo intensity , Spectral width
July, 2009
GIF File: Winds , Echo intensity , Spectral width
August, 2009

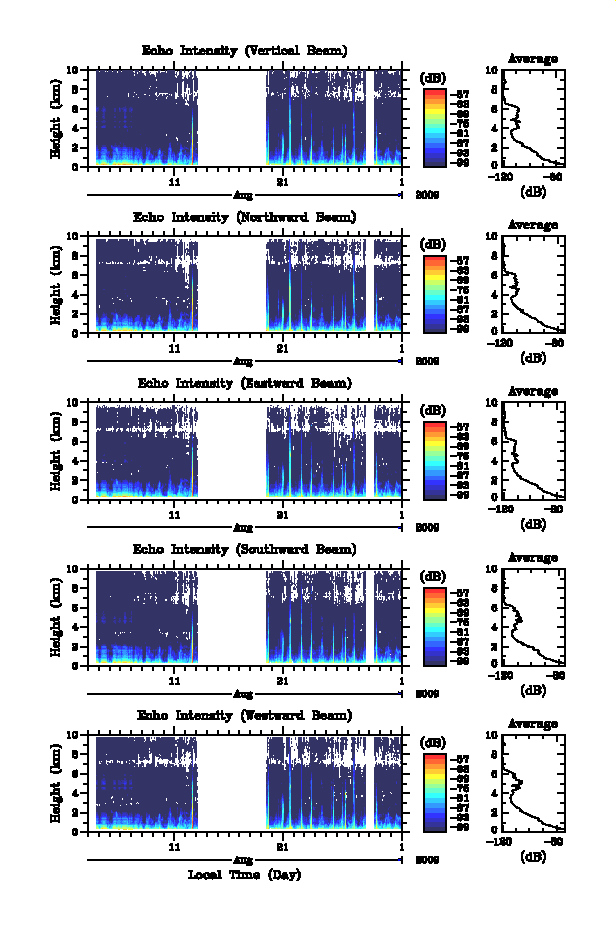

GIF File: Winds , Echo intensity , Spectral width
September, 2009

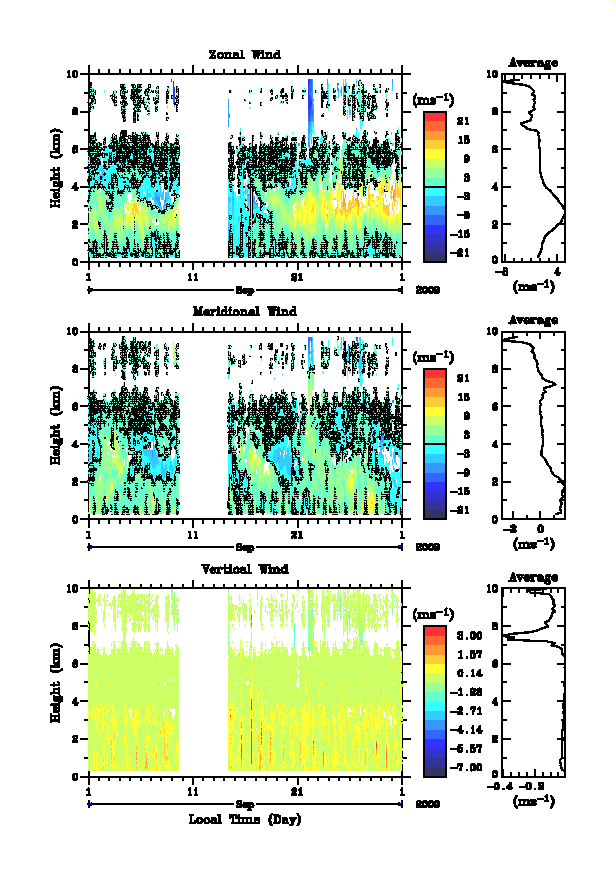

GIF File: Winds , Echo intensity , Spectral width
October, 2009
GIF File: Winds , Echo intensity , Spectral width

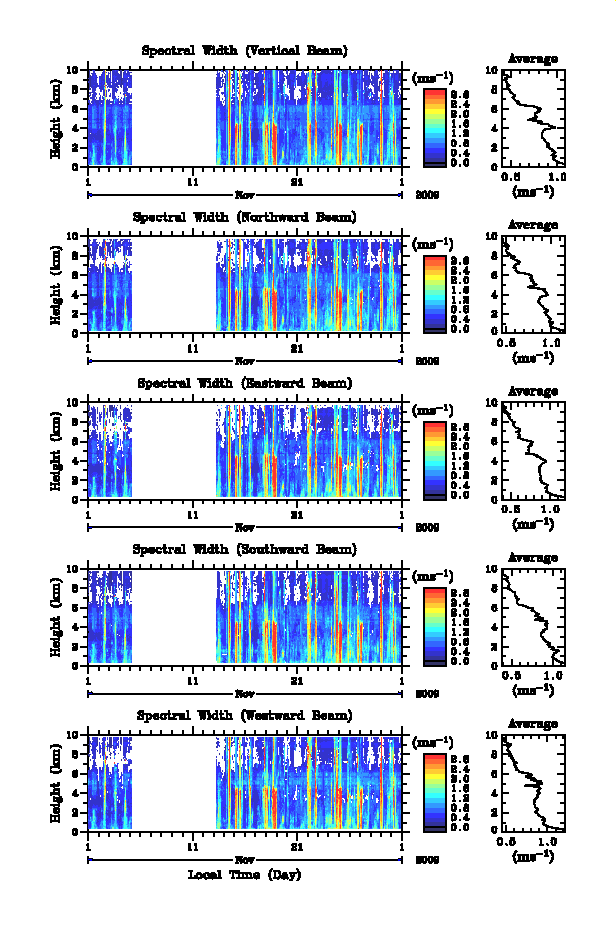

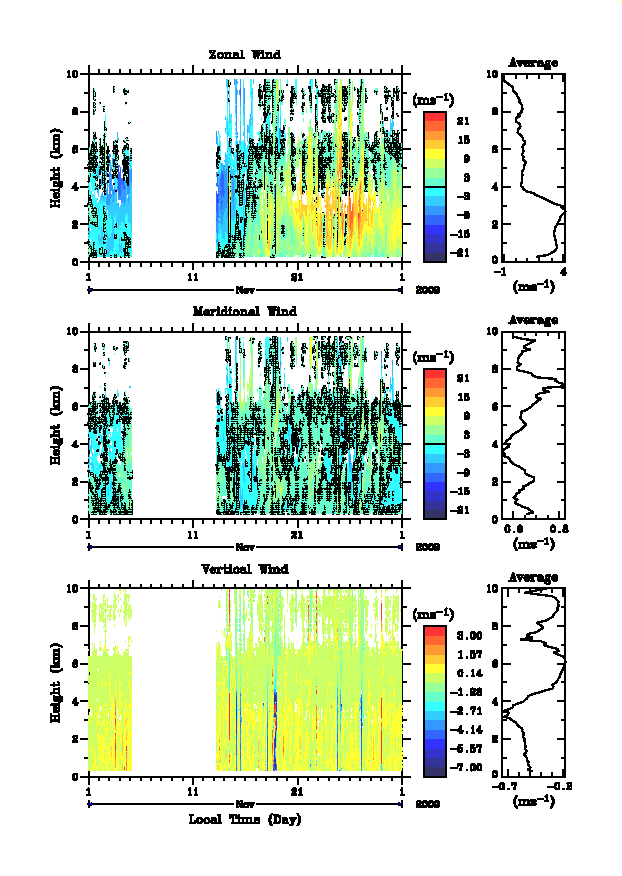

November, 2009
GIF File: Winds , Echo intensity , Spectral width
December, 2009

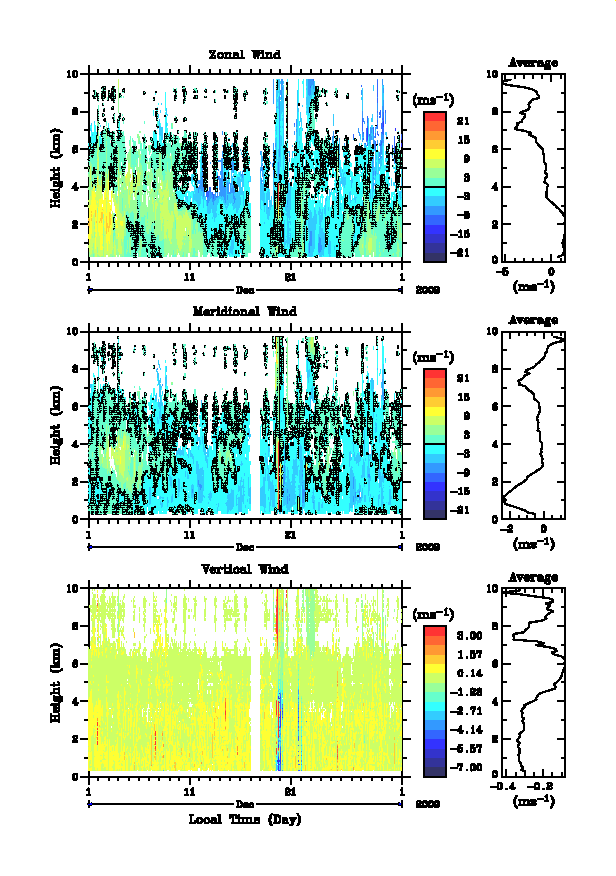

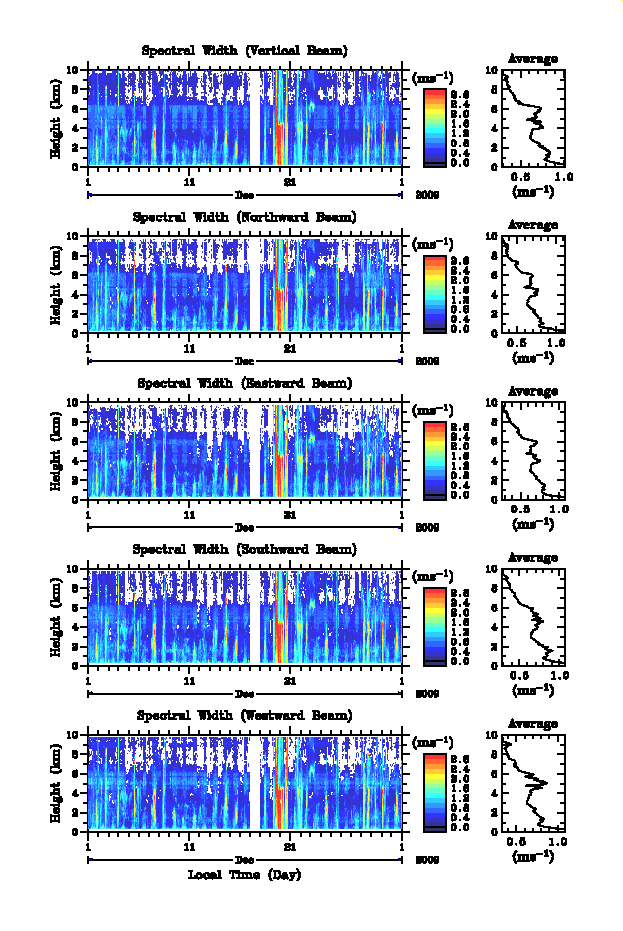

GIF File: Winds , Echo intensity , Spectral width

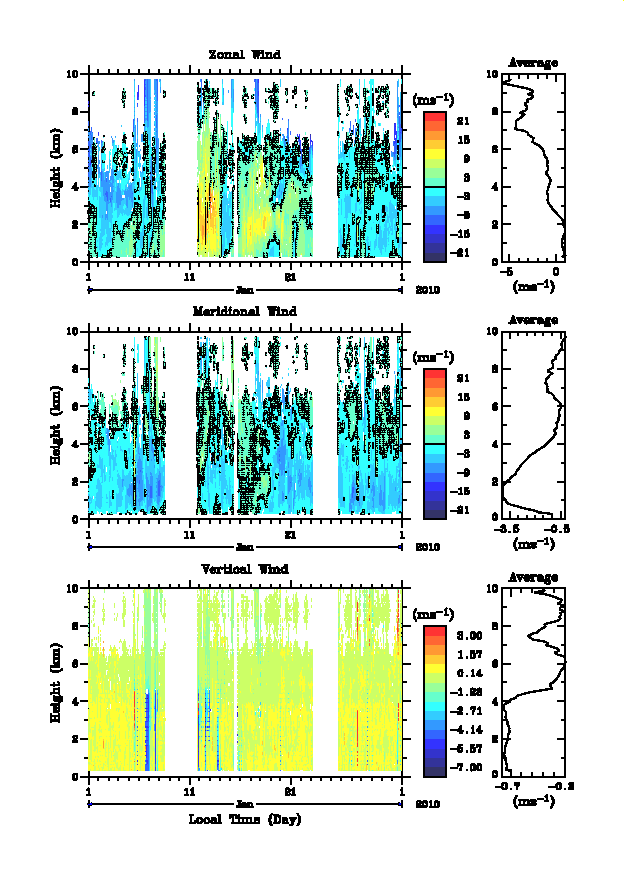

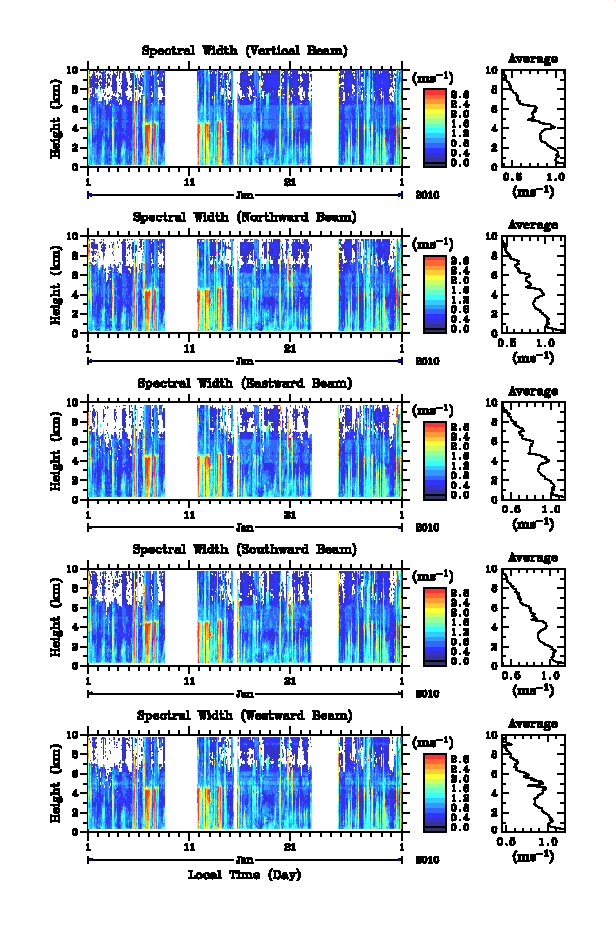

January, 2010

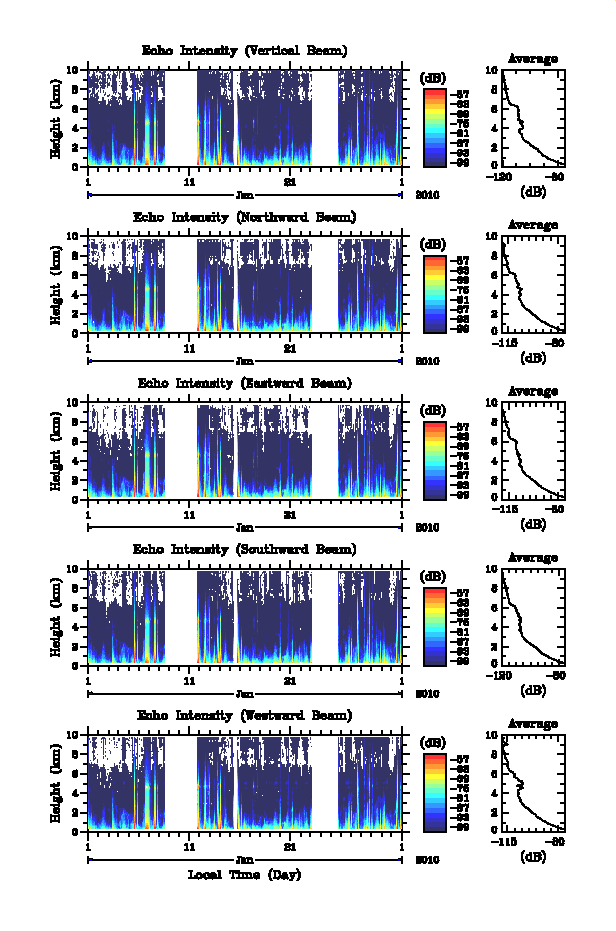

GIF File: Winds , Echo intensity , Spectral width
February, 2010

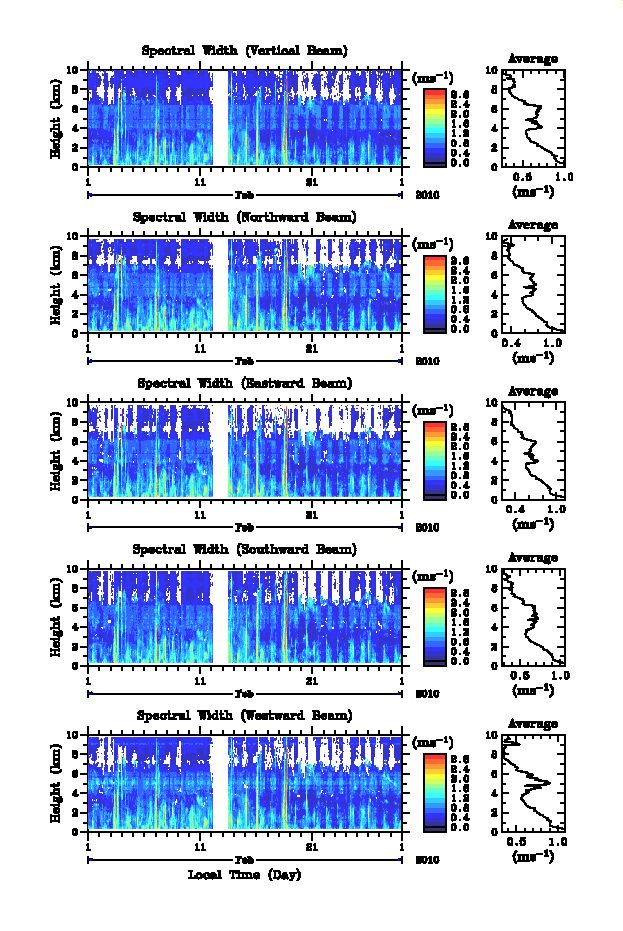

GIF File: Winds , Echo intensity , Spectral width
March, 2010

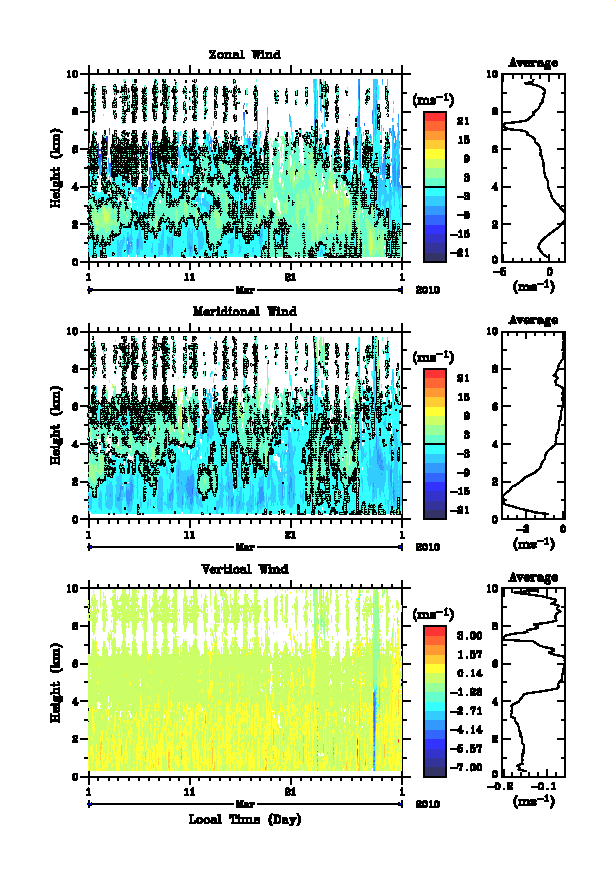

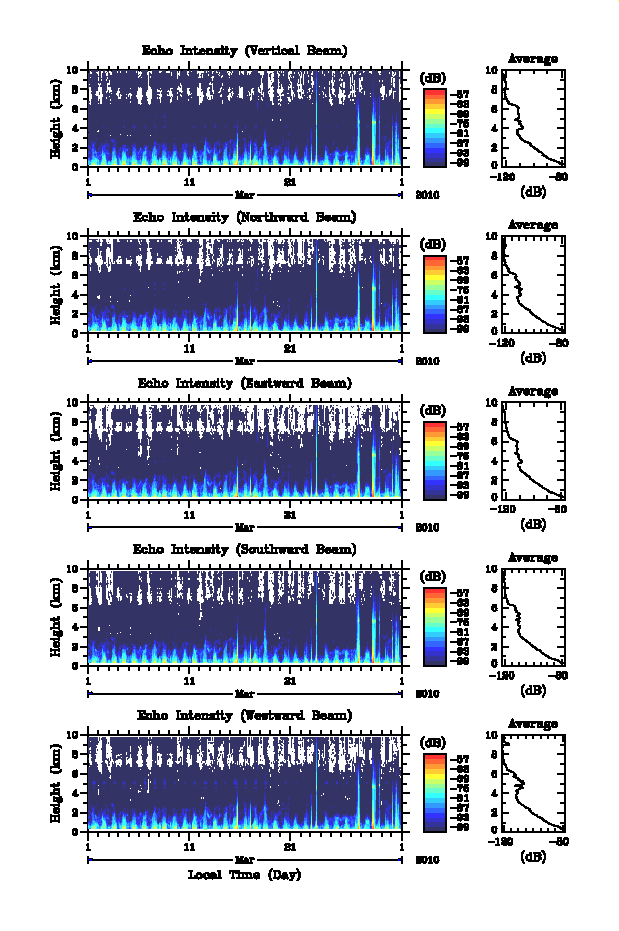

GIF File: Winds , Echo intensity , Spectral width

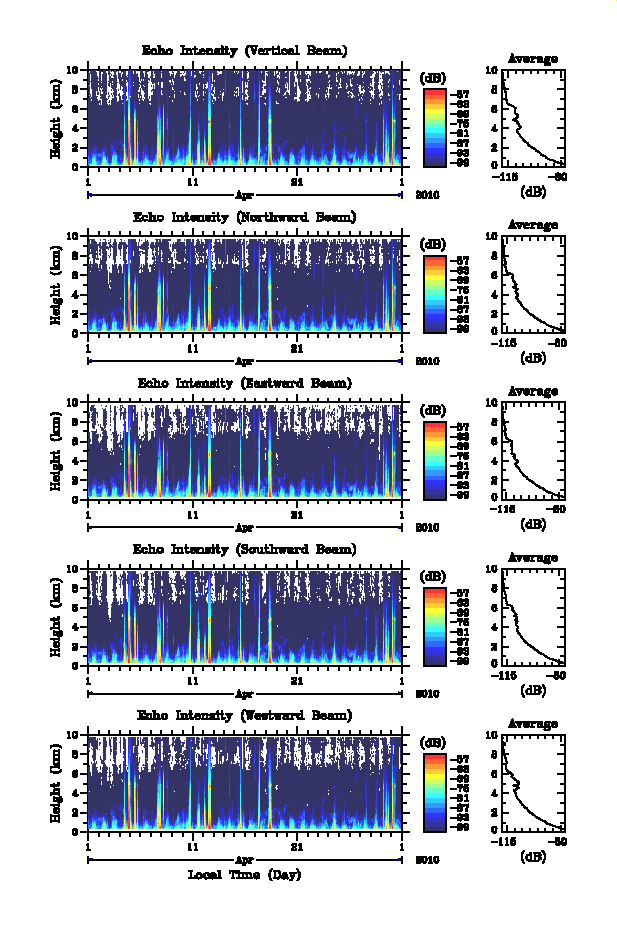

April, 2010

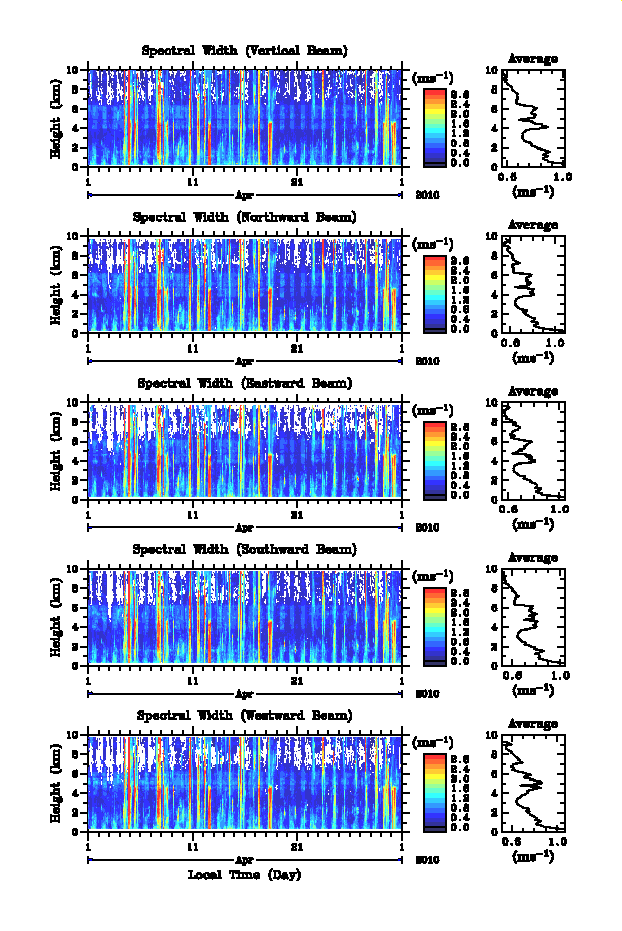

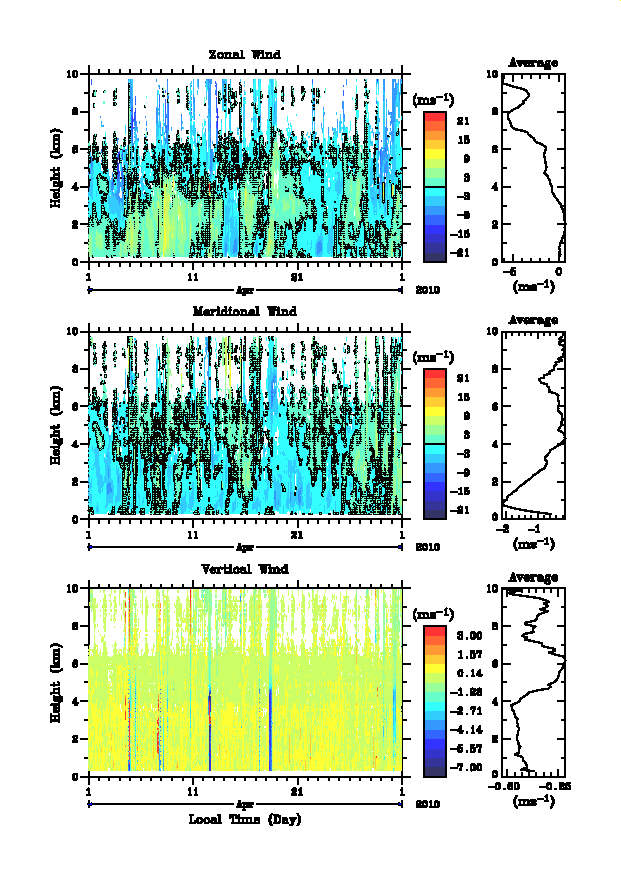

GIF File: Winds , Echo intensity , Spectral width
May, 2010

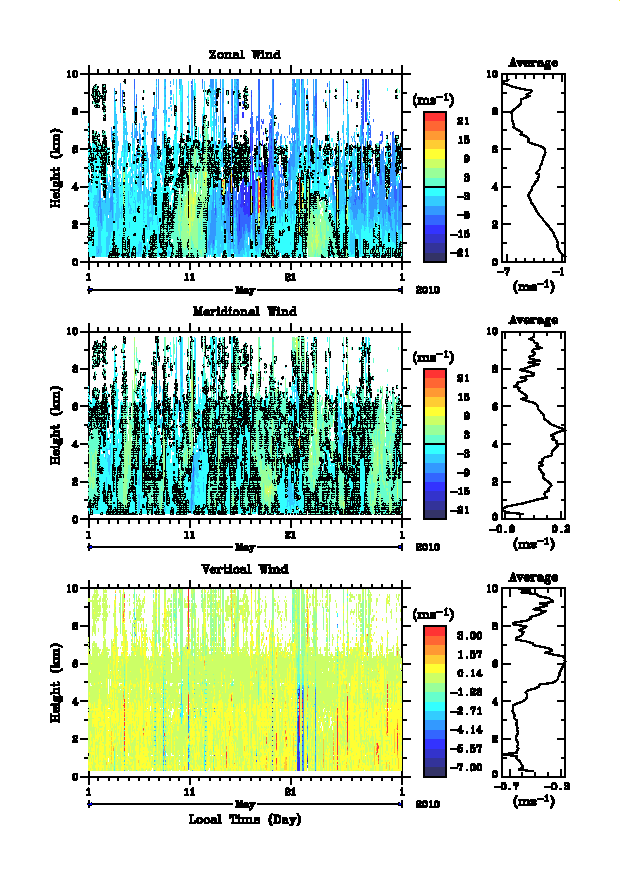

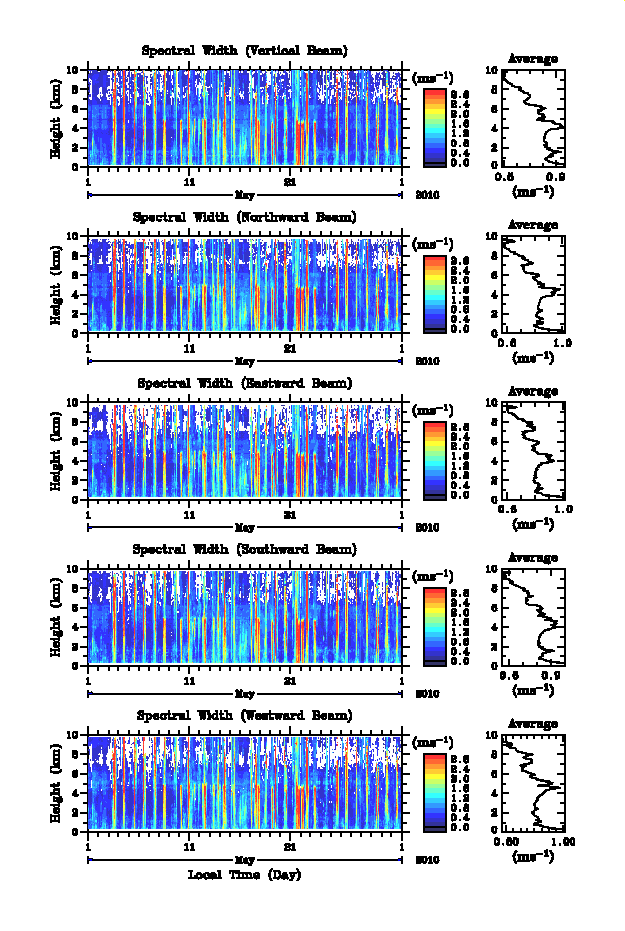

GIF File: Winds , Echo intensity , Spectral width
June, 2010
GIF File: Winds , Echo intensity , Spectral width

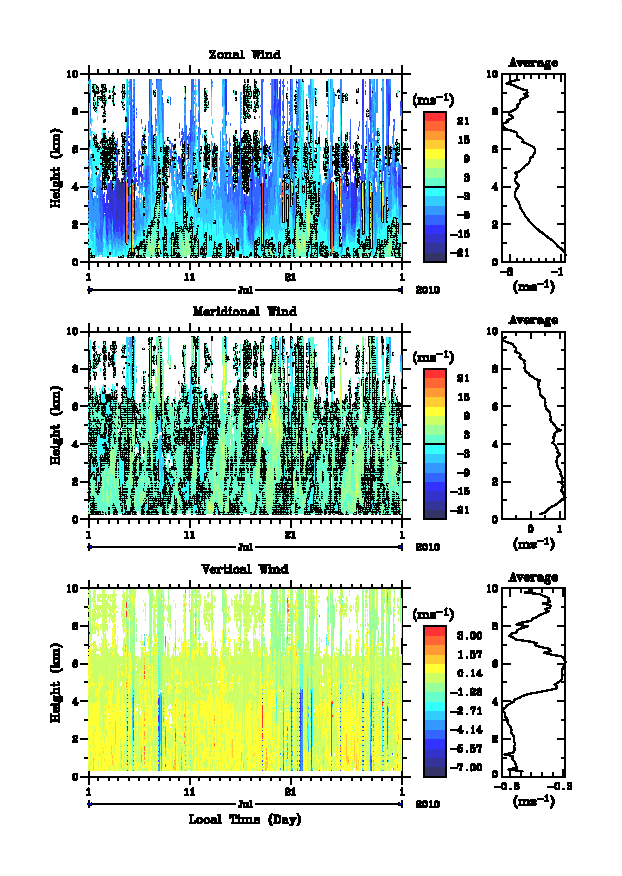

July, 2010
GIF File: Winds , Echo intensity , Spectral width

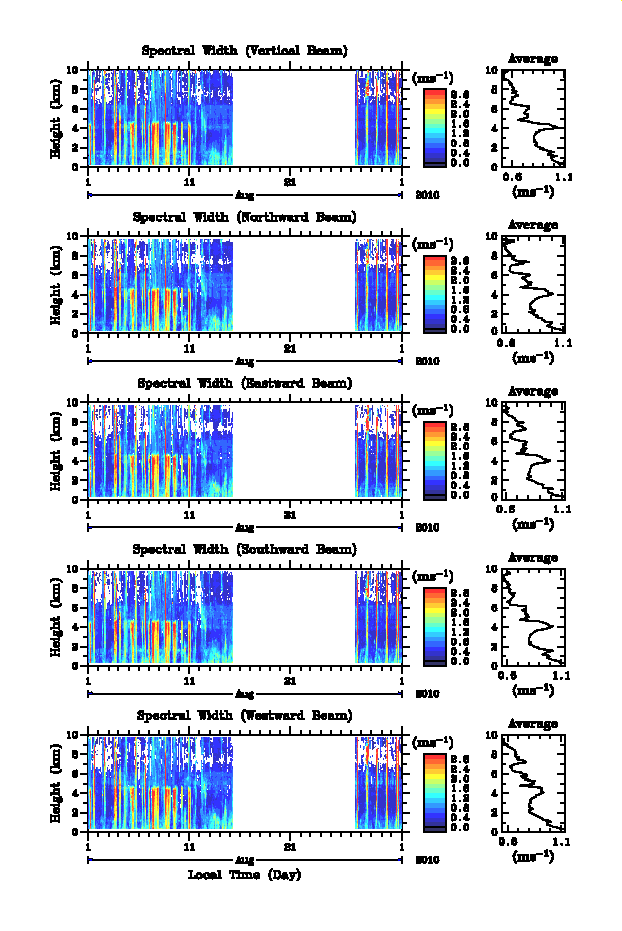

August, 2010

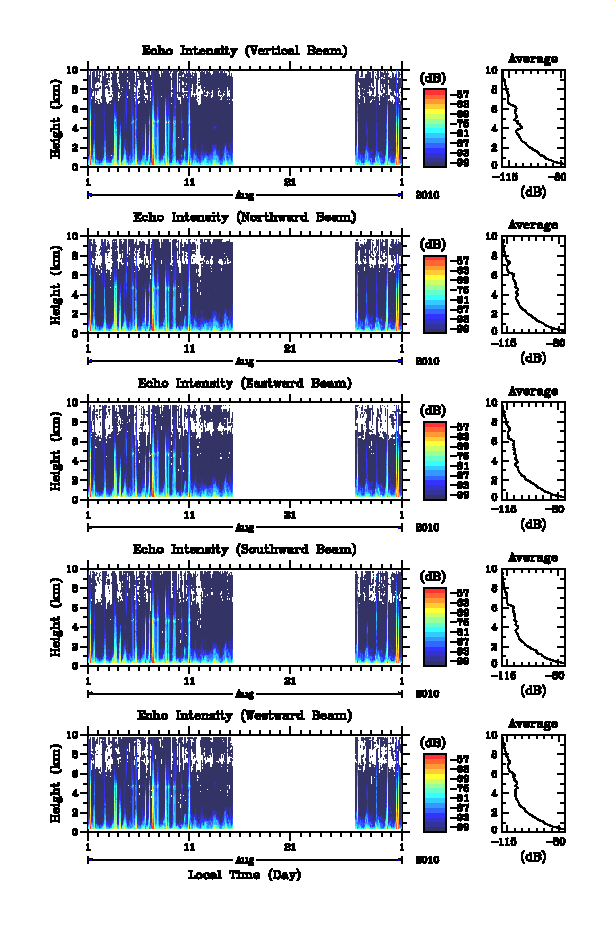

GIF File: Winds , Echo intensity , Spectral width
September, 2010

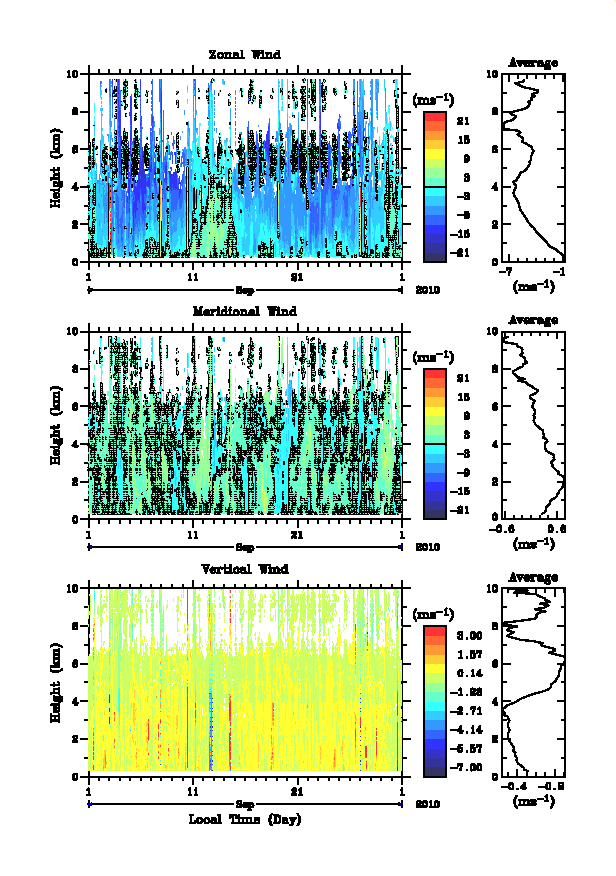

GIF File: Winds , Echo intensity , Spectral width

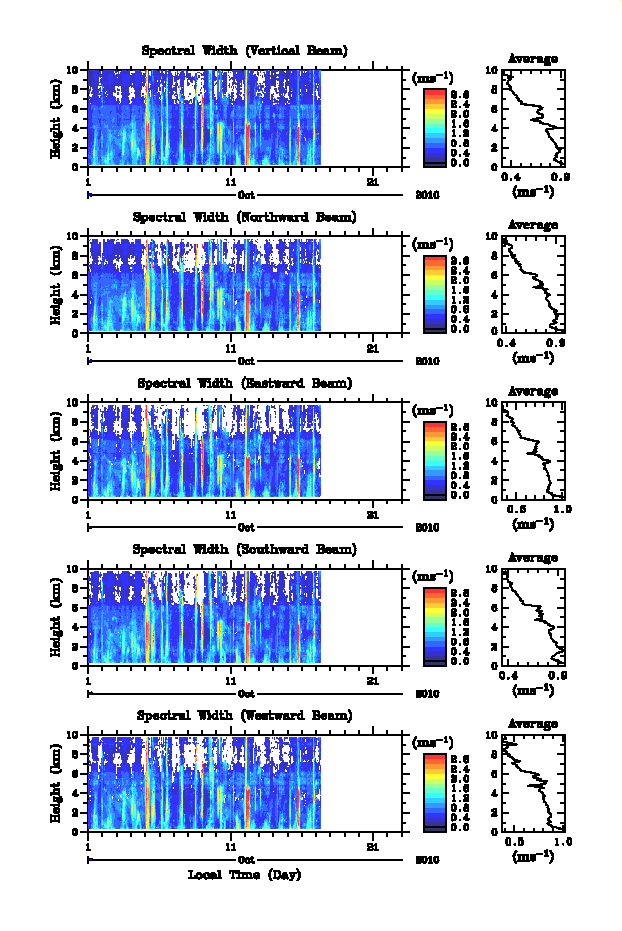

October, 2010
GIF File: Winds , Echo intensity , Spectral width

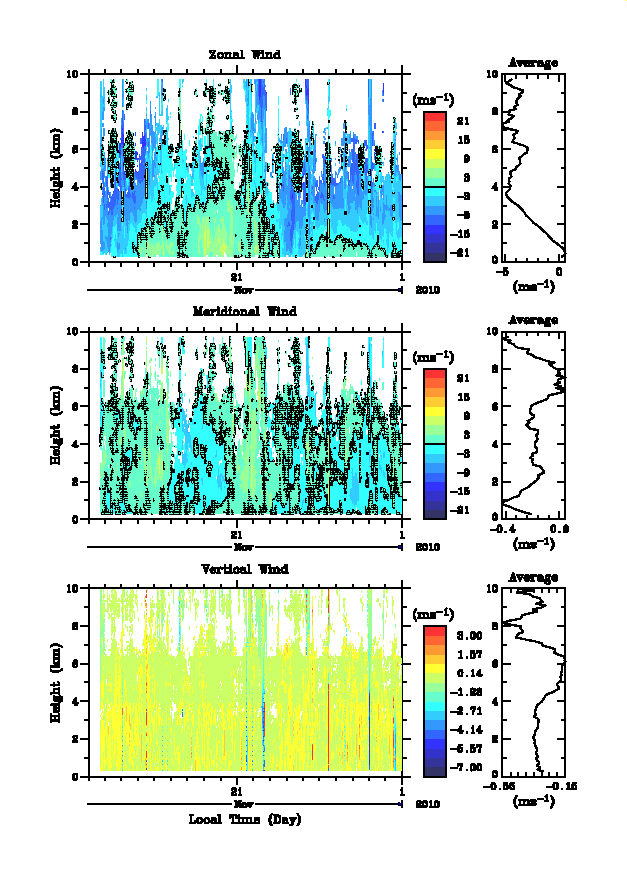

November, 2010
GIF File: Winds , Echo intensity , Spectral width
December, 2010

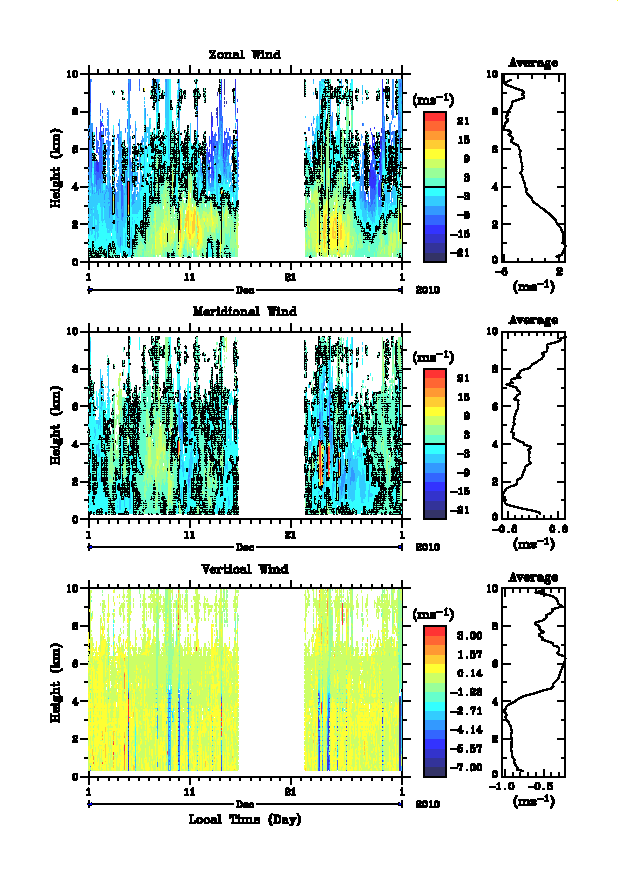

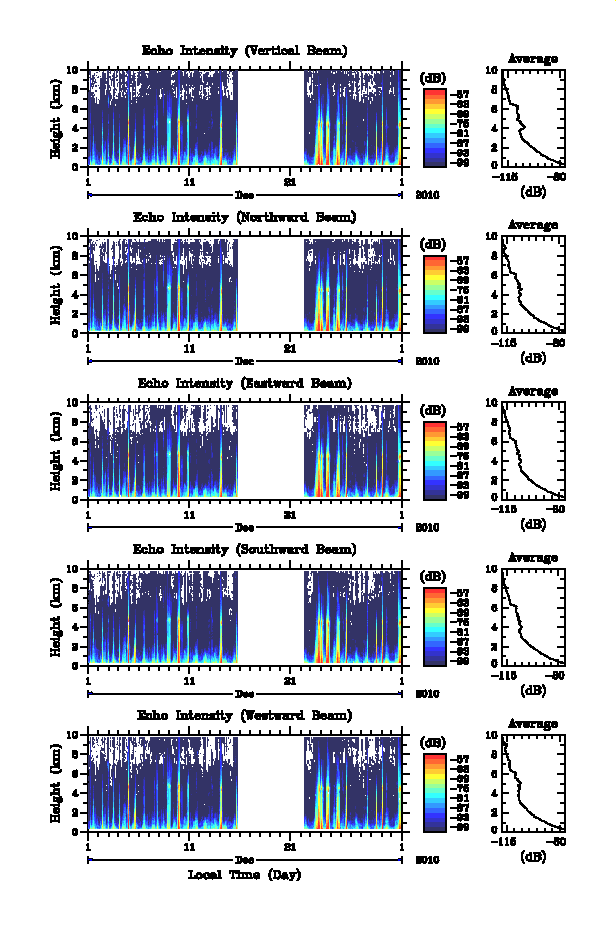

GIF File: Winds , Echo intensity , Spectral width

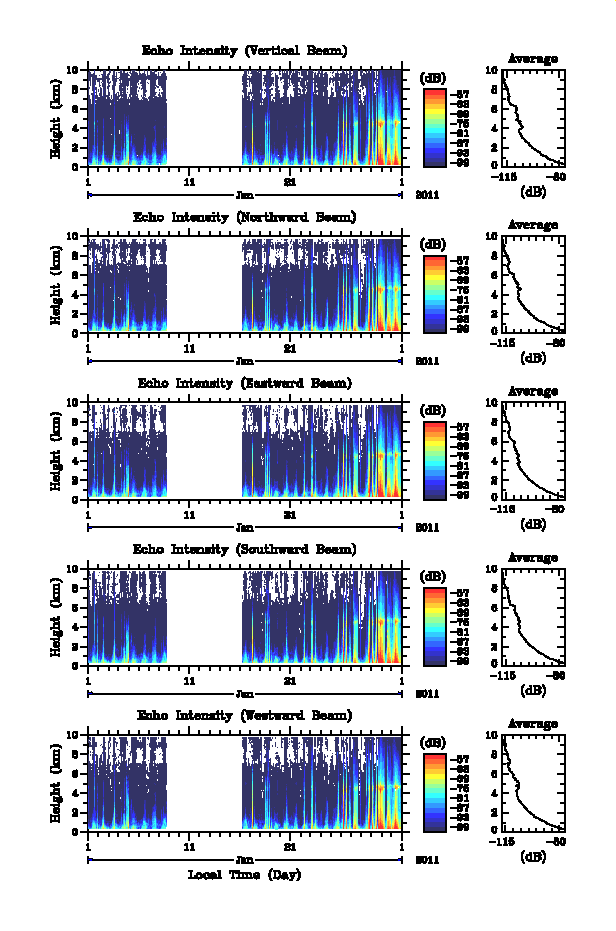

January, 2011

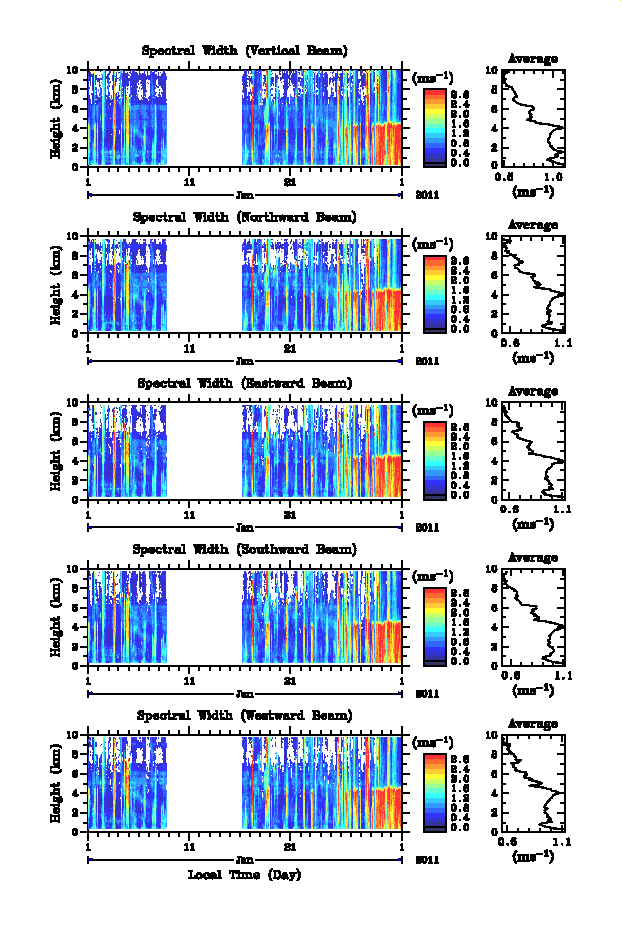

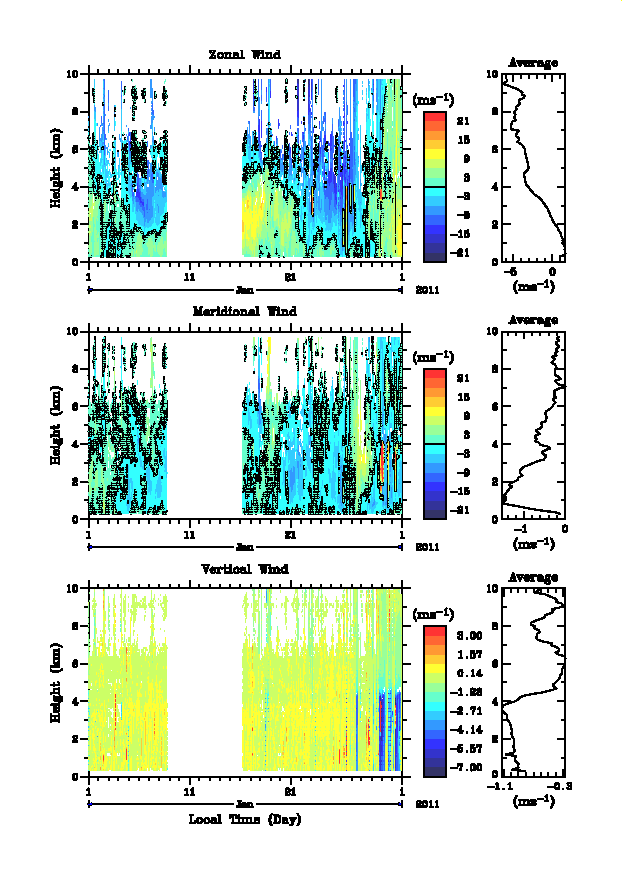

GIF File: Winds , Echo intensity , Spectral width

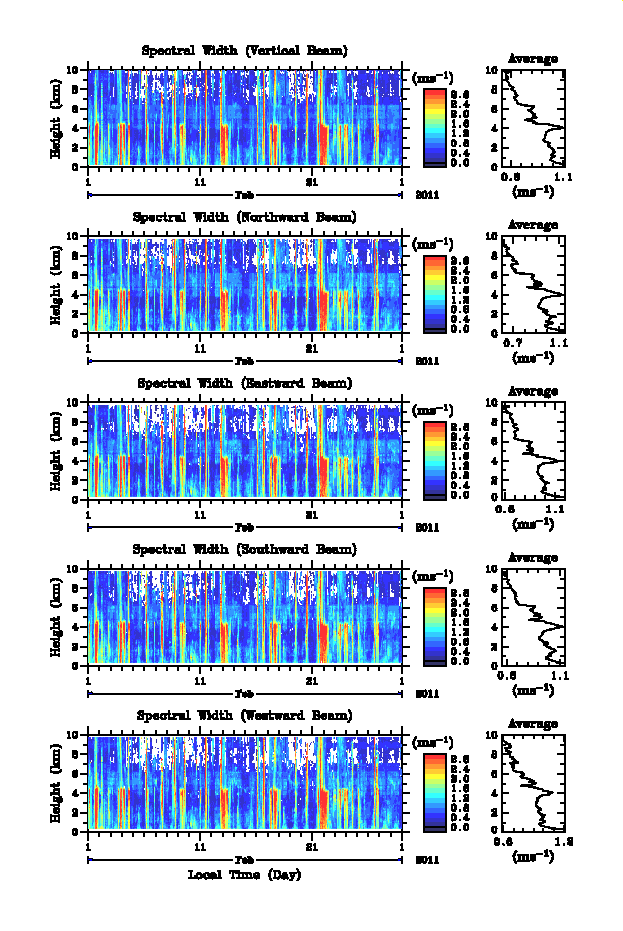

February, 2011
GIF File: Winds , Echo intensity , Spectral width
March, 2011
GIF File: Winds , Echo intensity , Spectral width
April, 2011

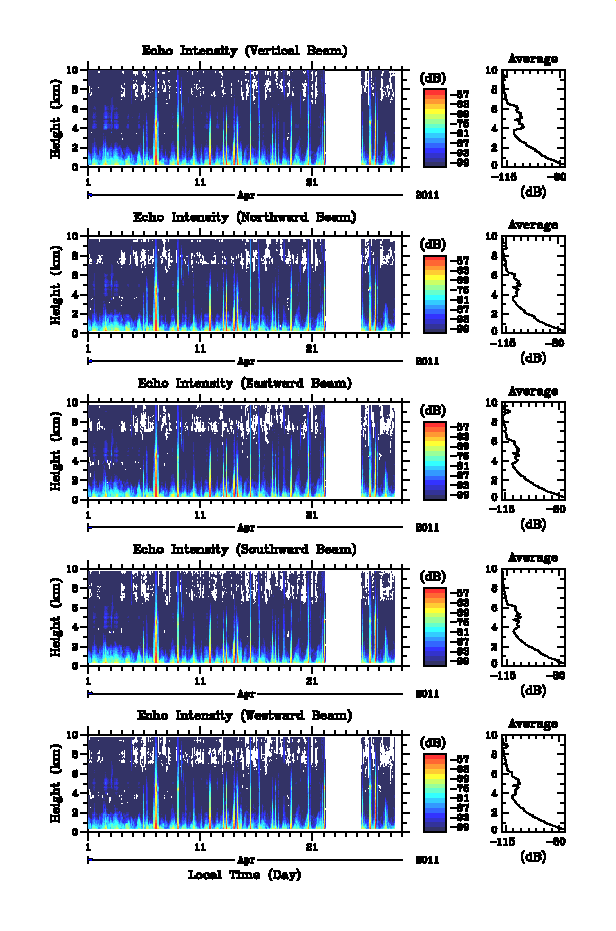

GIF File: Winds , Echo intensity , Spectral width
May, 2011

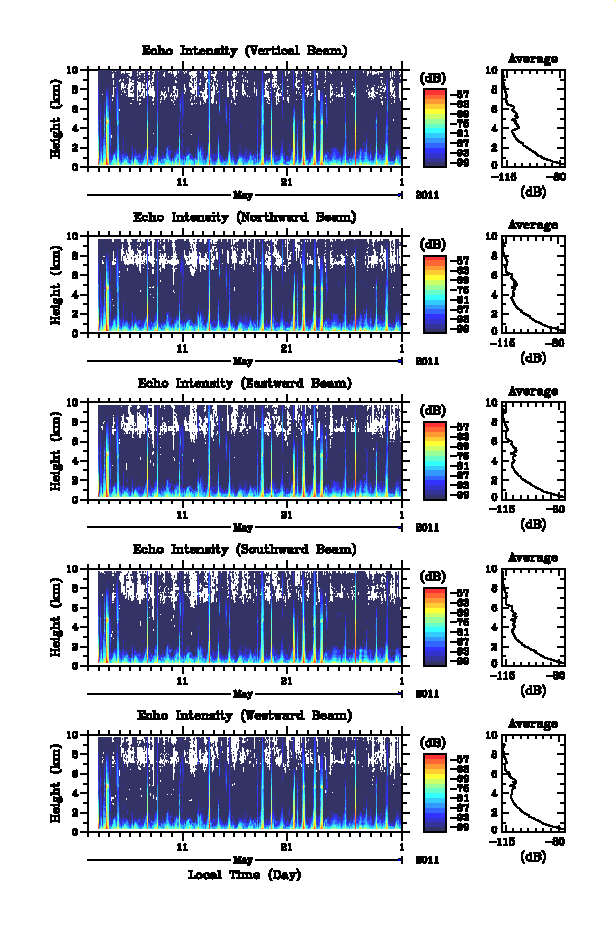

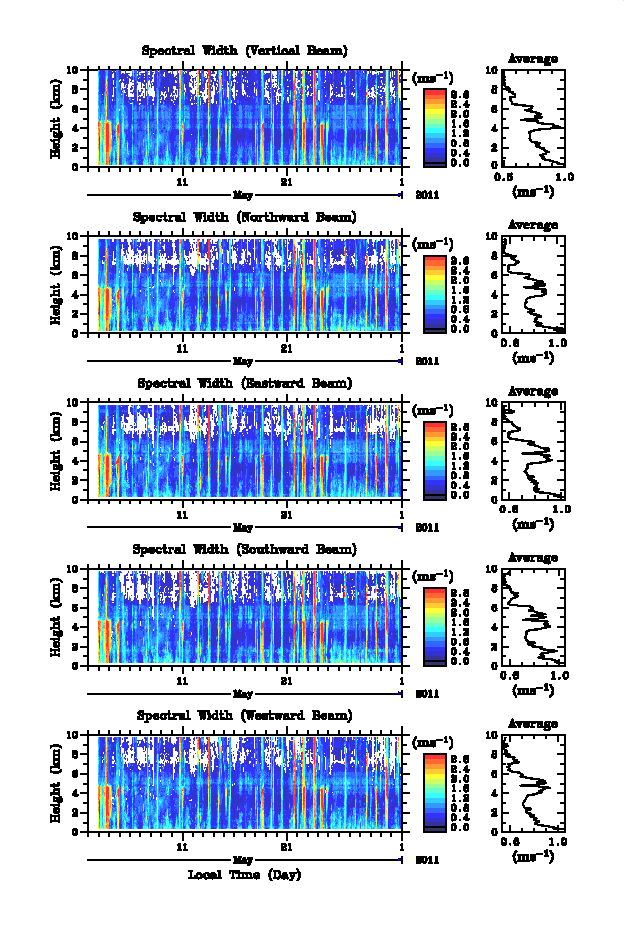

GIF File: Winds , Echo intensity , Spectral width
June, 2011

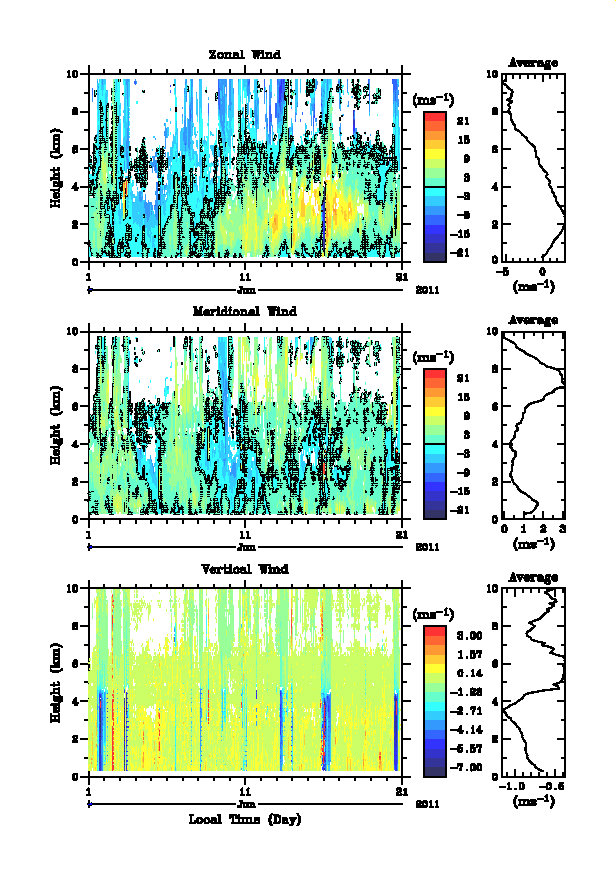

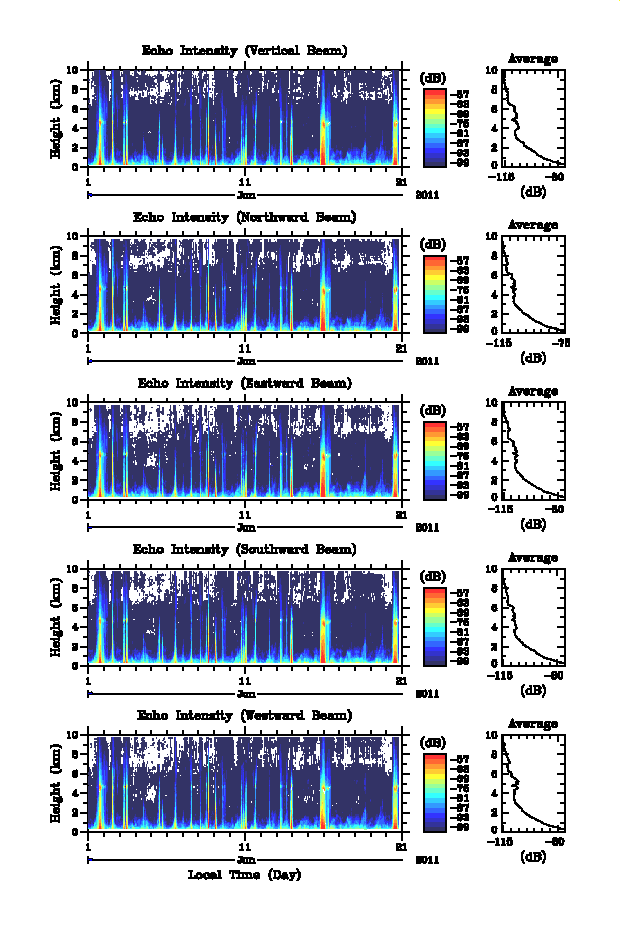

GIF File: Winds , Echo intensity , Spectral width
July, 2011
GIF File: Winds , Echo intensity , Spectral width

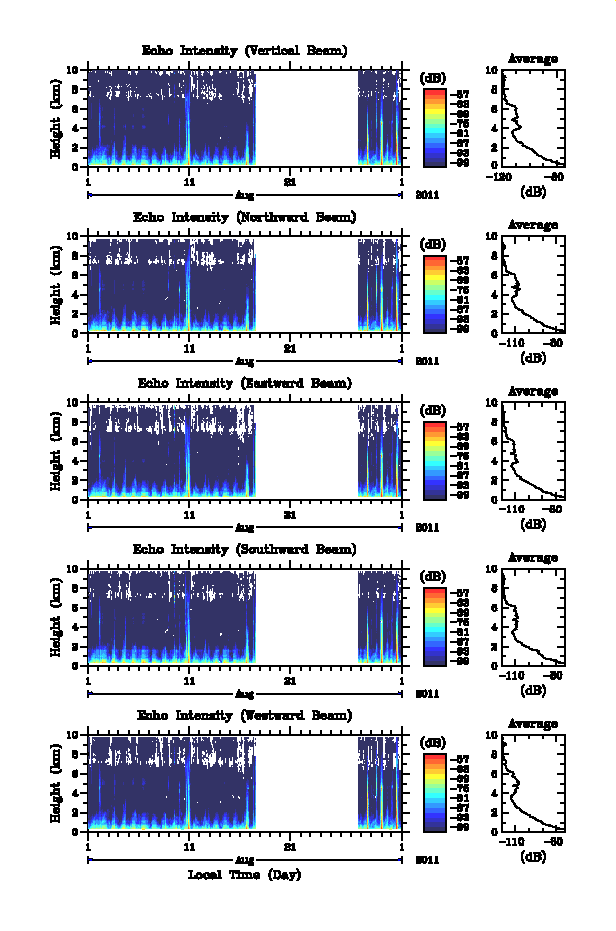

August, 2011

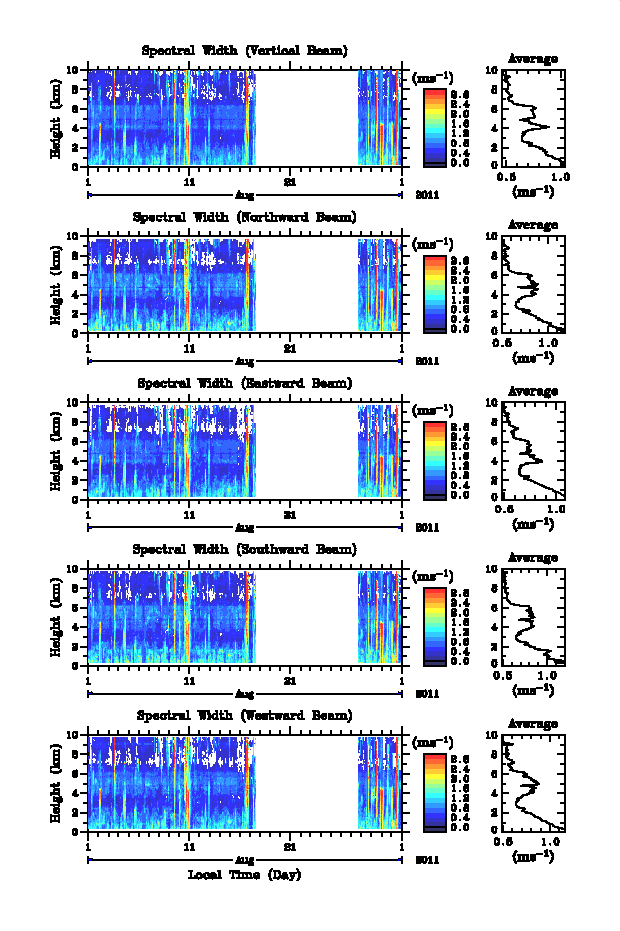

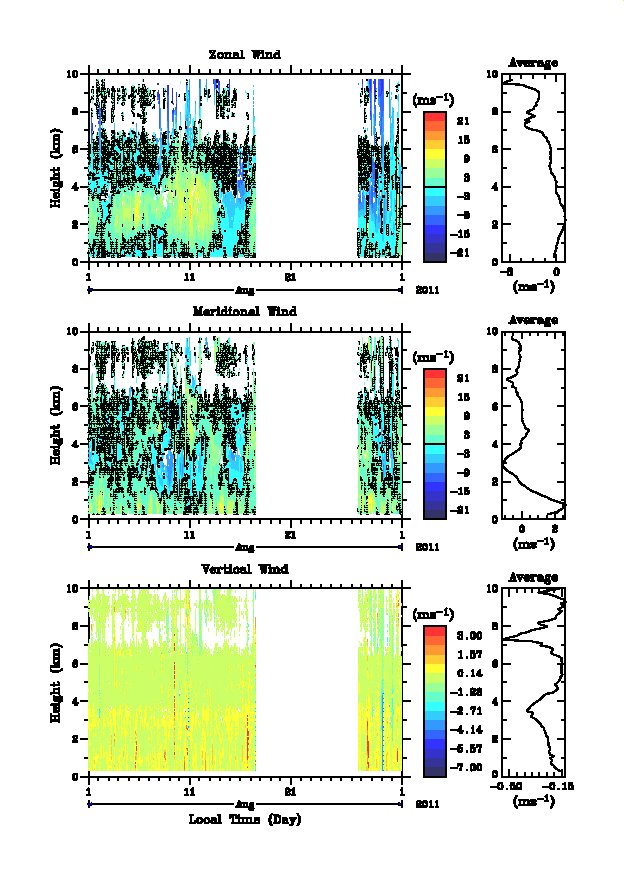

GIF File: Winds , Echo intensity , Spectral width
September, 2011

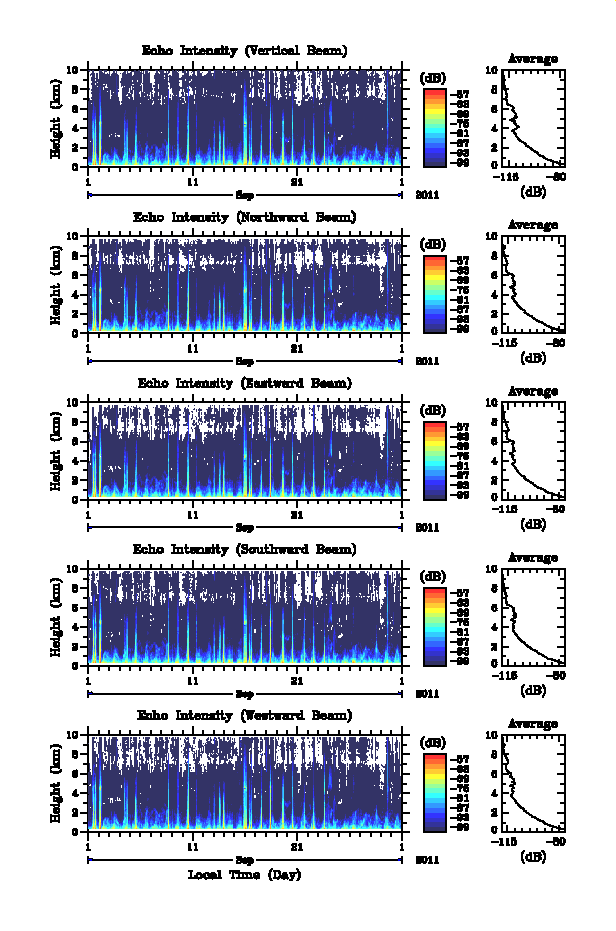

GIF File: Winds , Echo intensity , Spectral width

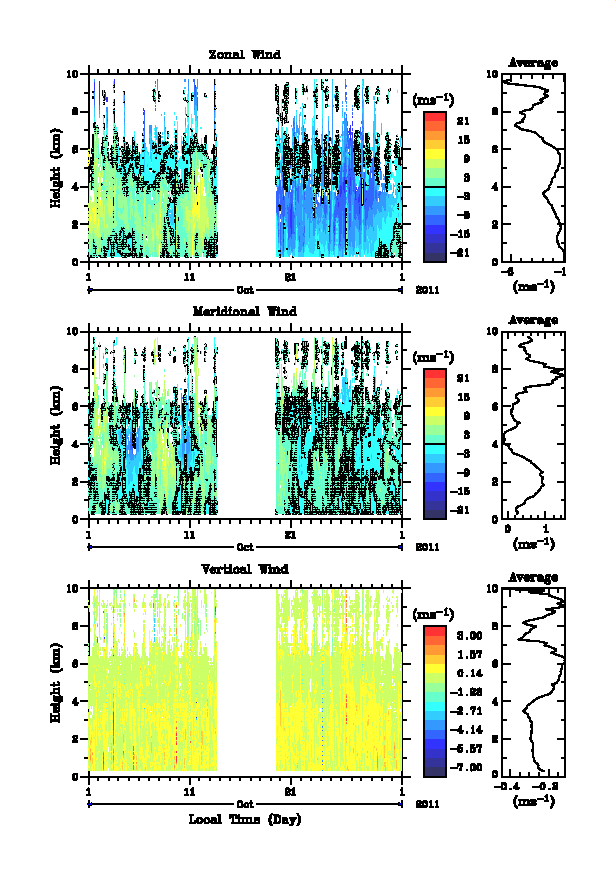

October, 2011

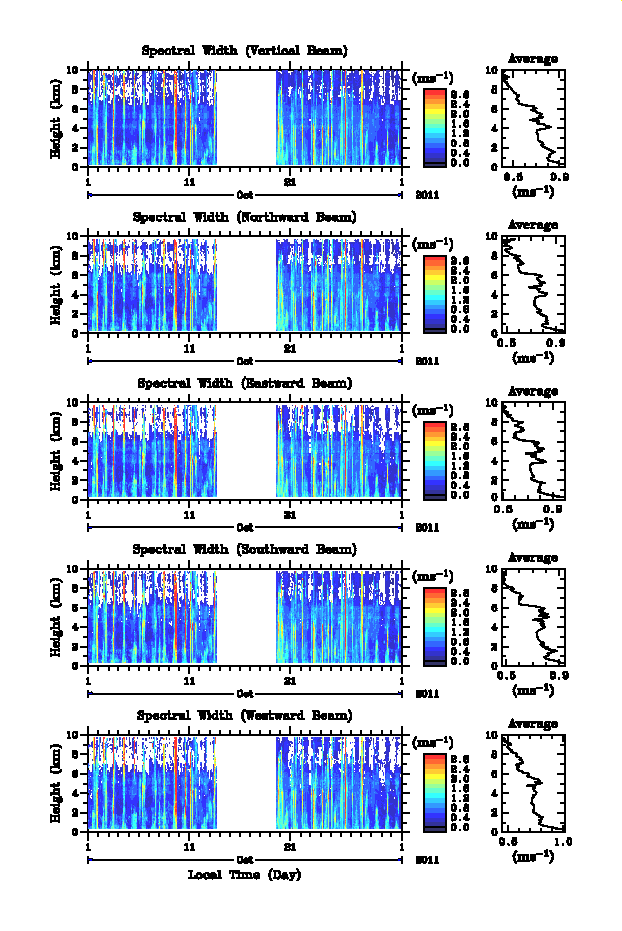

GIF File: Winds , Echo intensity , Spectral width
November, 2011

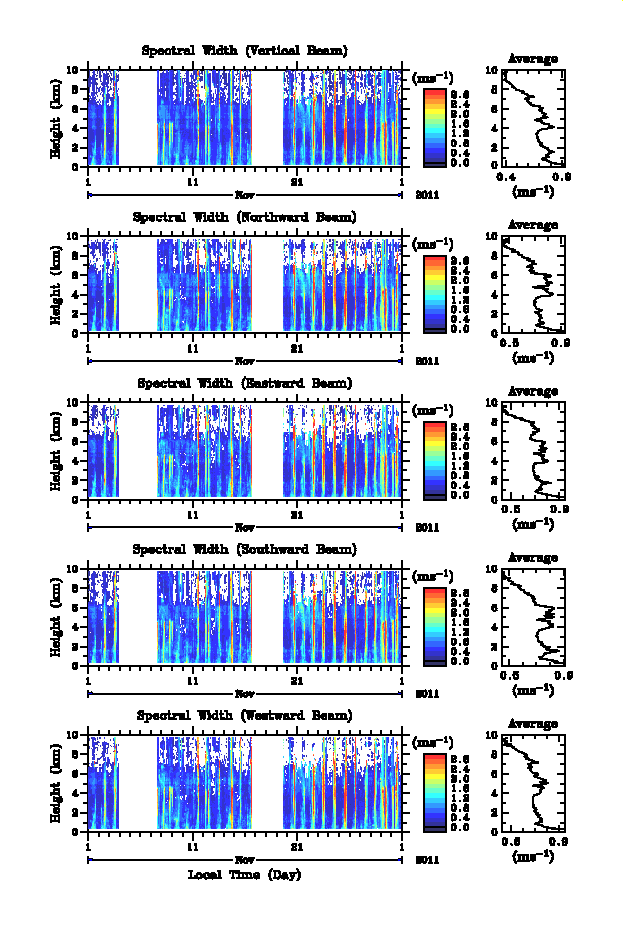

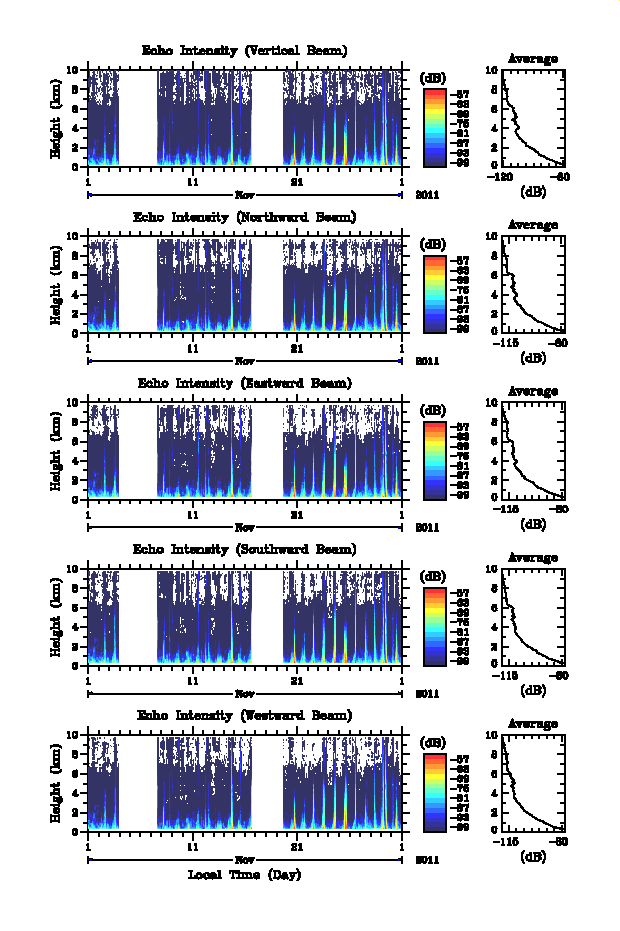

GIF File: Winds , Echo intensity , Spectral width
December, 2011

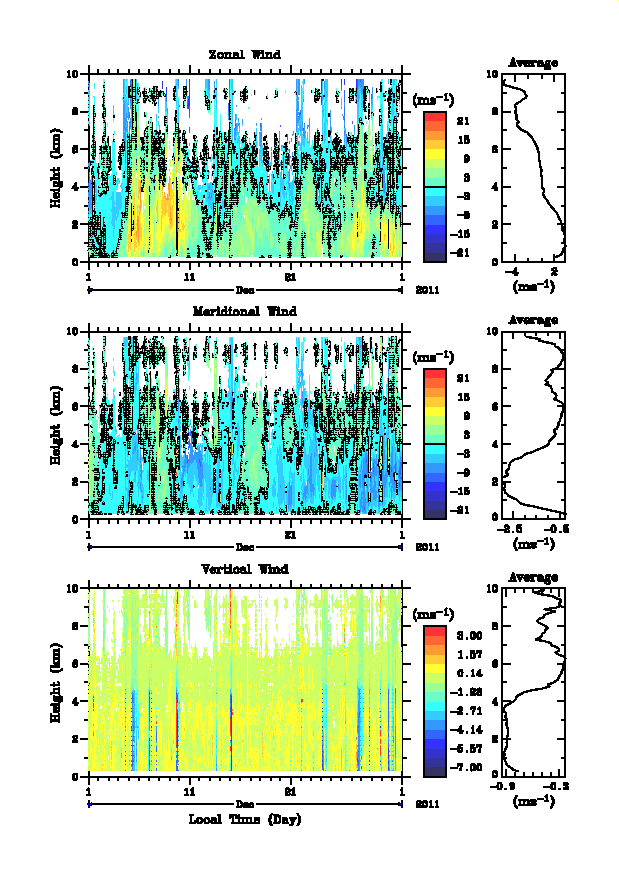

GIF File: Winds , Echo intensity , Spectral width

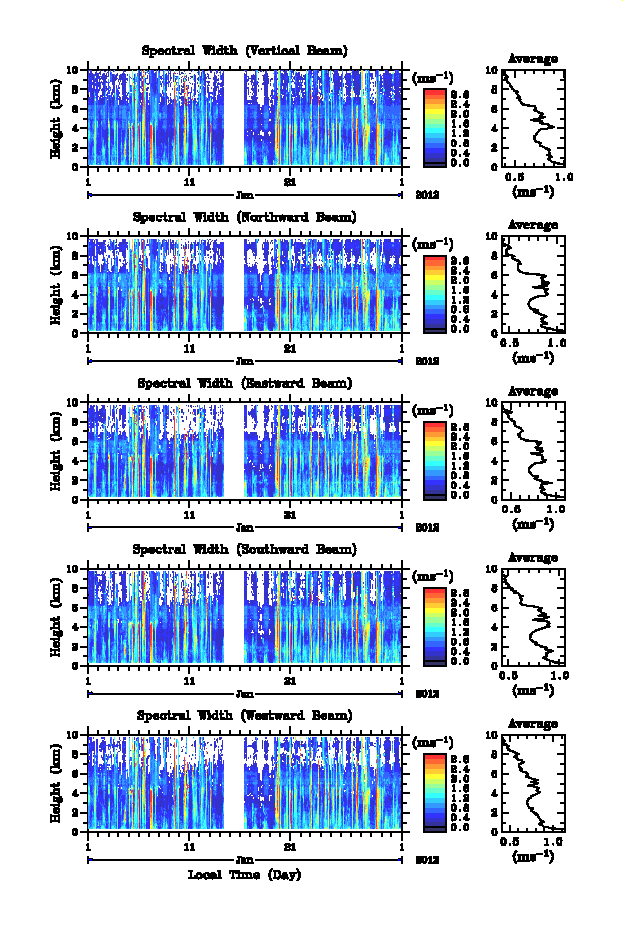

January, 2012
GIF File: Winds , Echo intensity , Spectral width
February, 2012
GIF File: Winds , Echo intensity , Spectral width

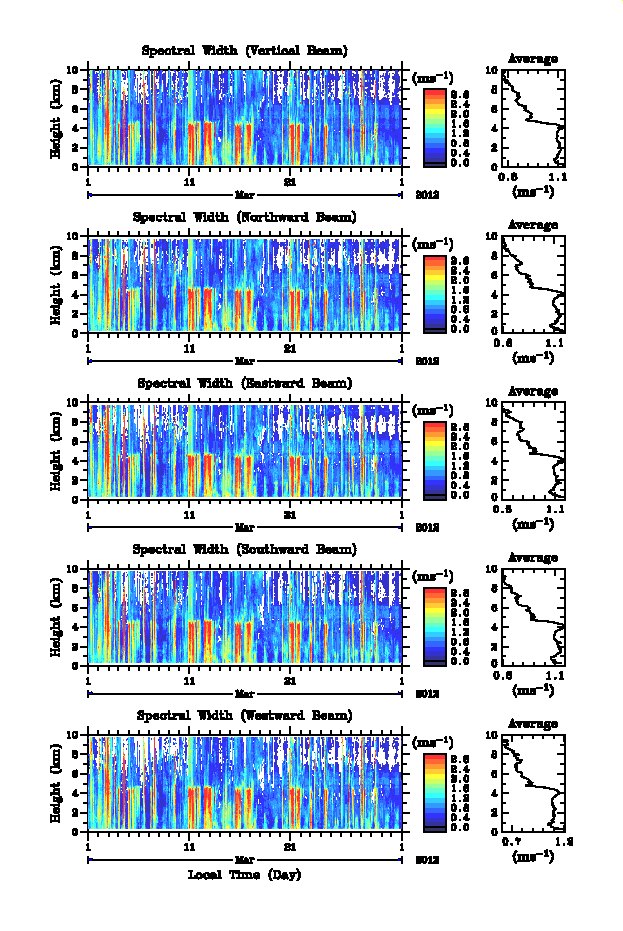

March, 2012

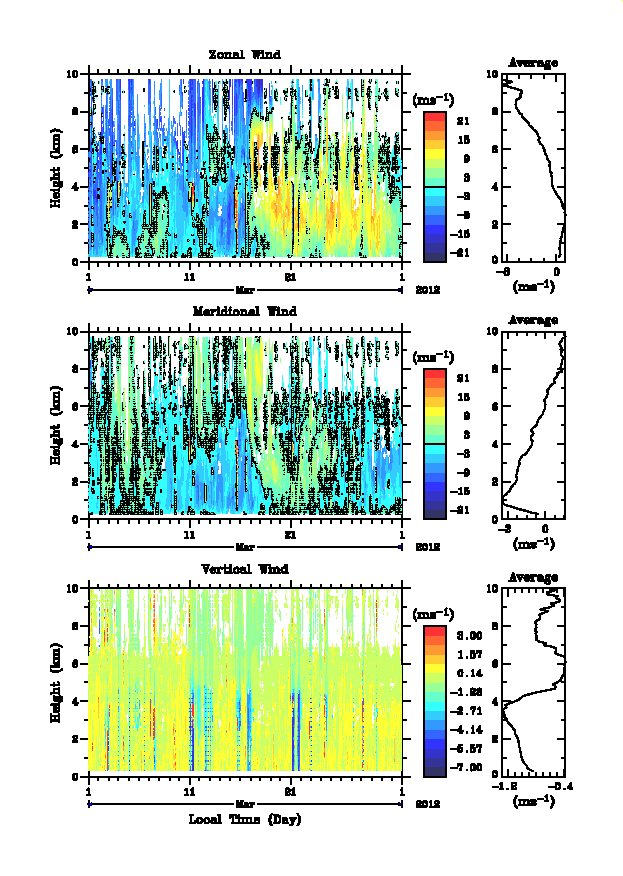

GIF File: Winds , Echo intensity , Spectral width

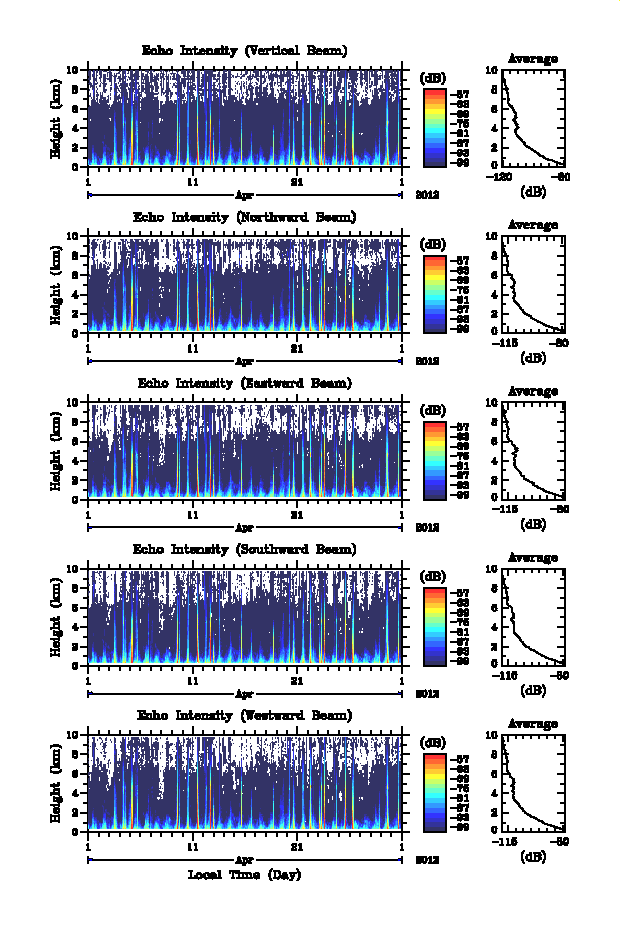

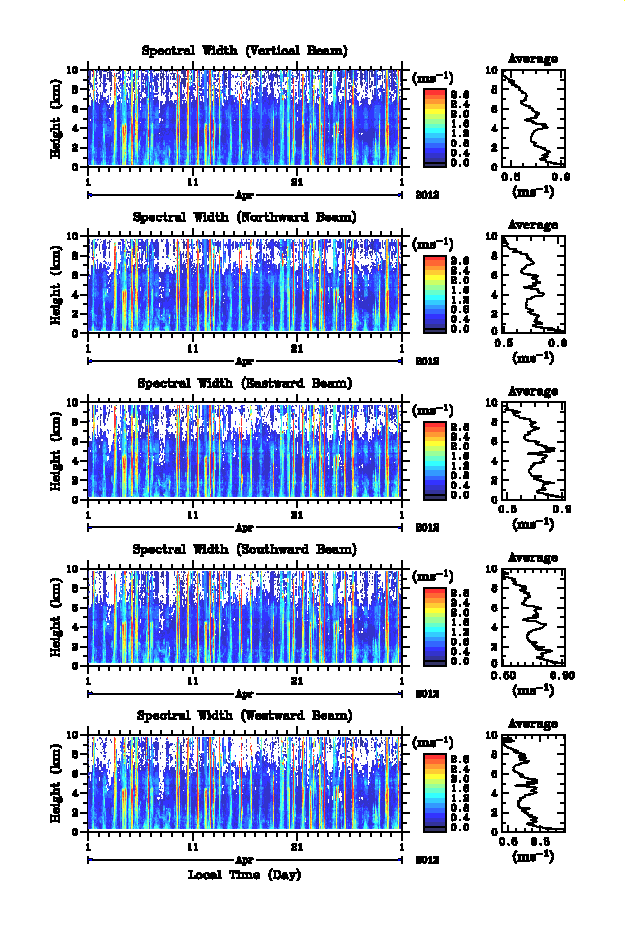

April, 2012
GIF File: Winds , Echo intensity , Spectral width
May, 2012

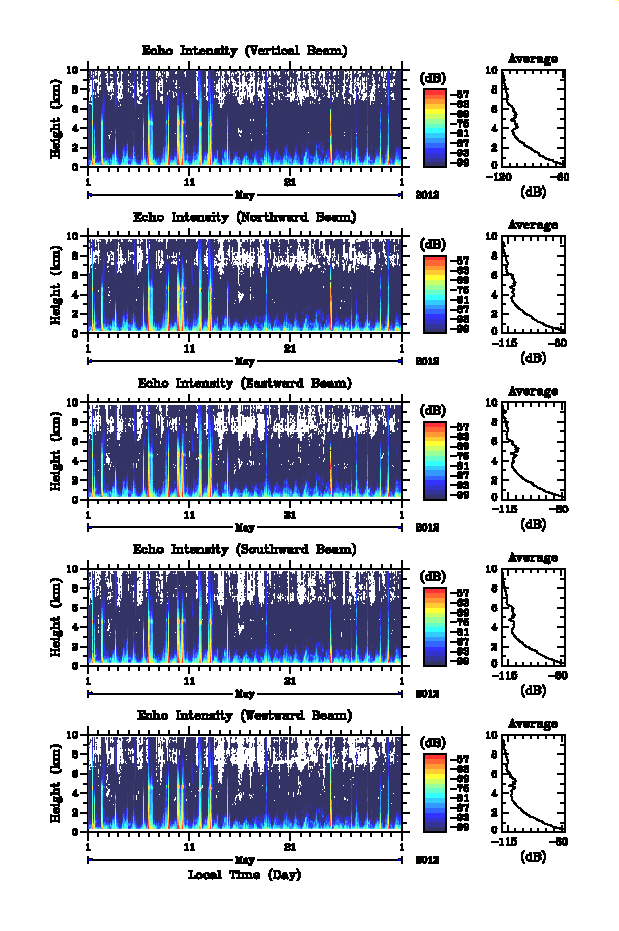

GIF File: Winds , Echo intensity , Spectral width
June, 2012

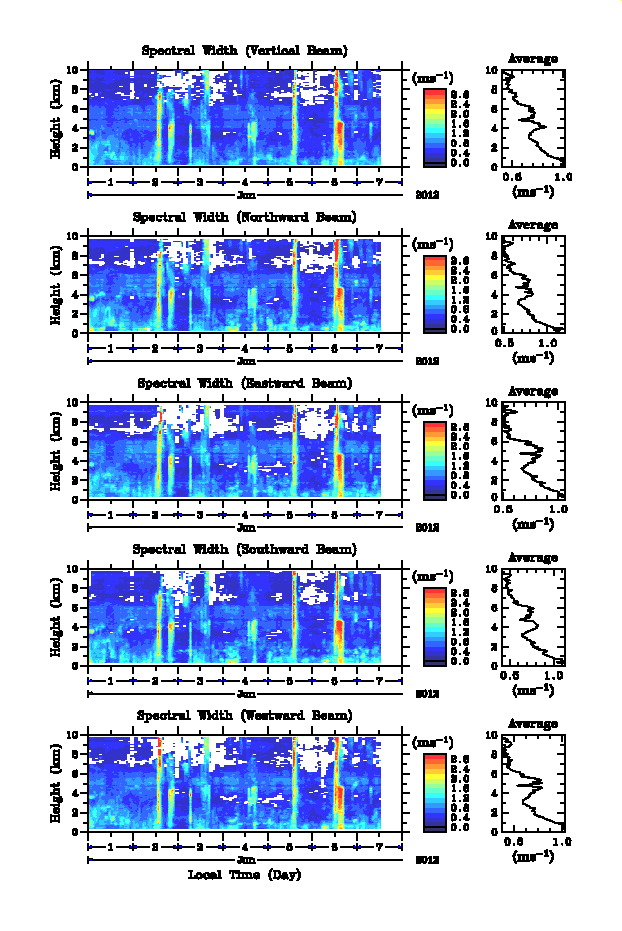

GIF File: Winds , Echo intensity , Spectral width

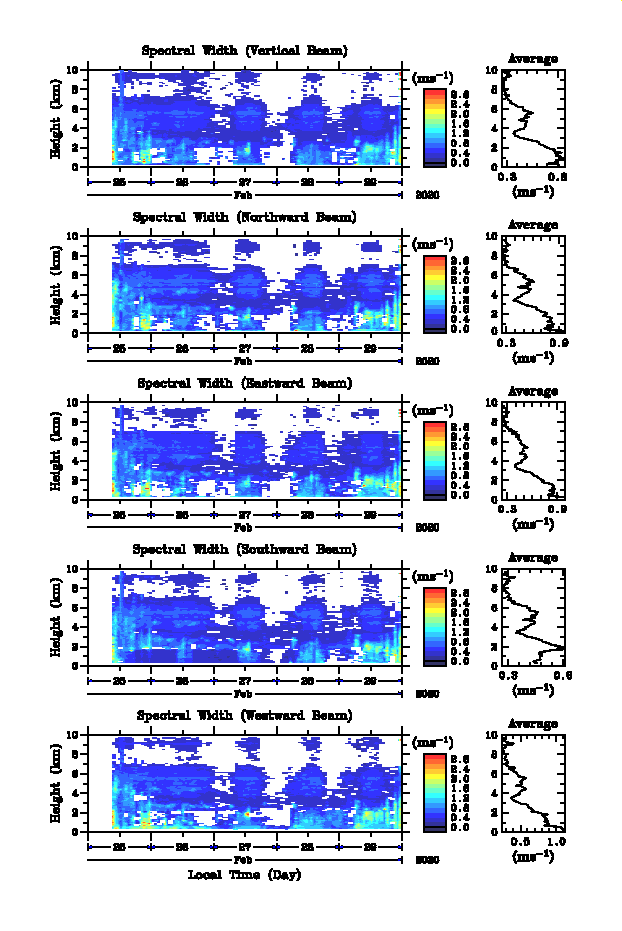

February, 2020
GIF File: Winds , Echo intensity , Spectral width

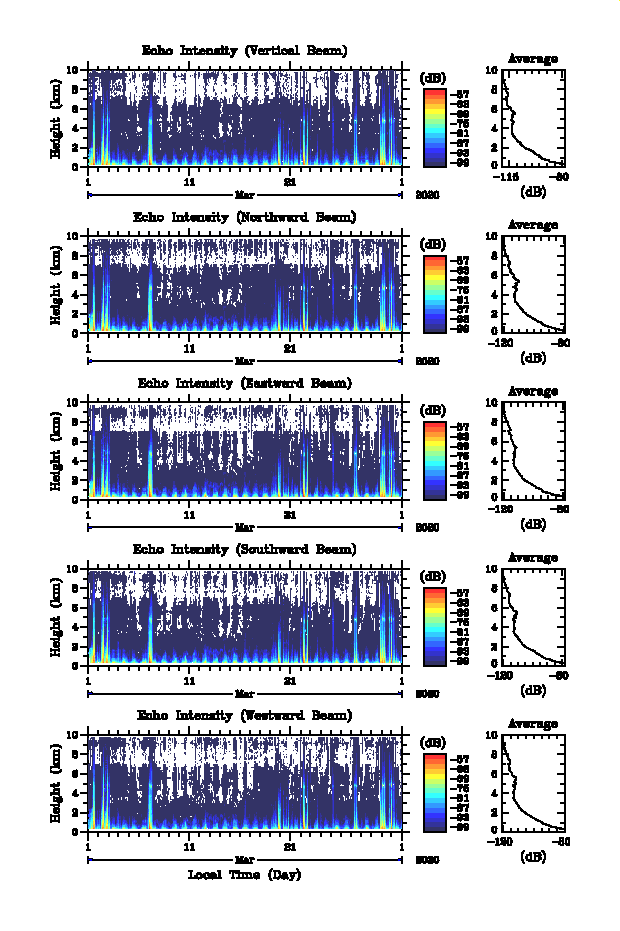

March, 2020

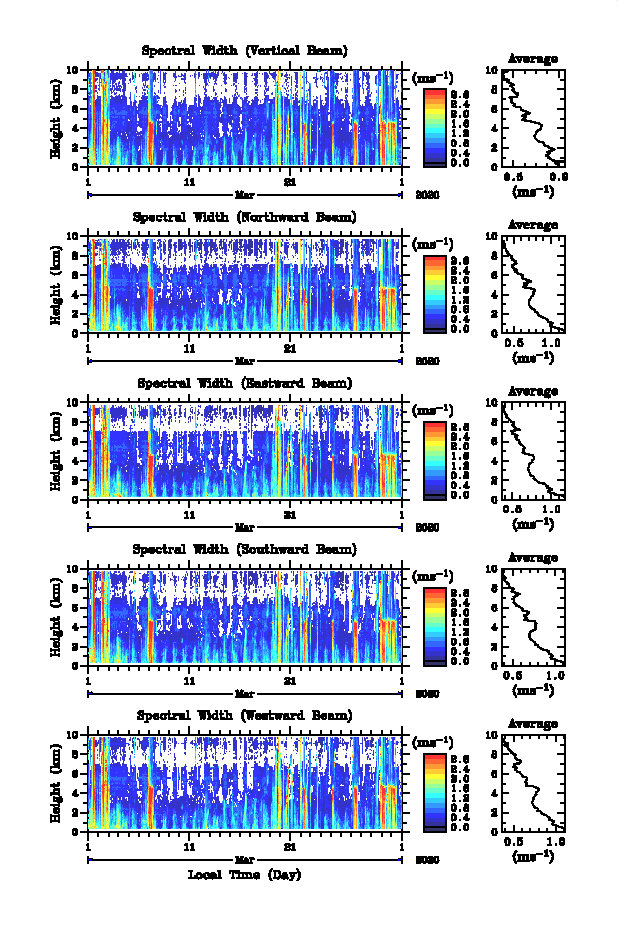

GIF File: Winds , Echo intensity , Spectral width

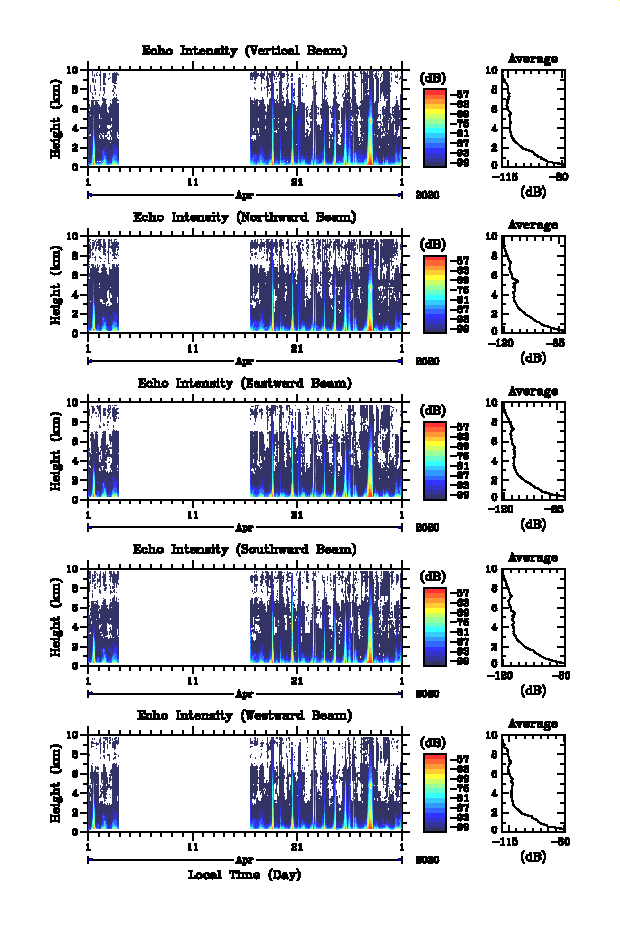

April, 2020

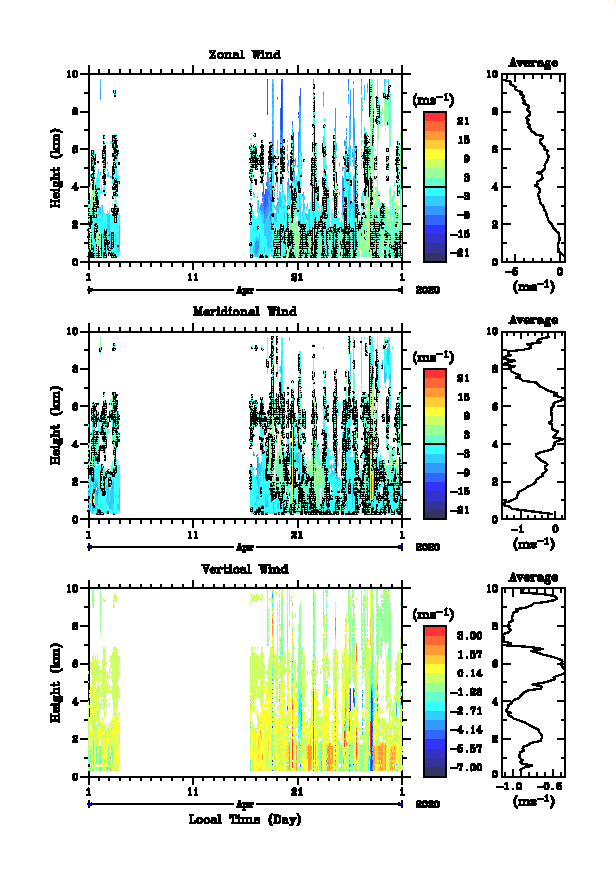

GIF File: Winds , Echo intensity , Spectral width

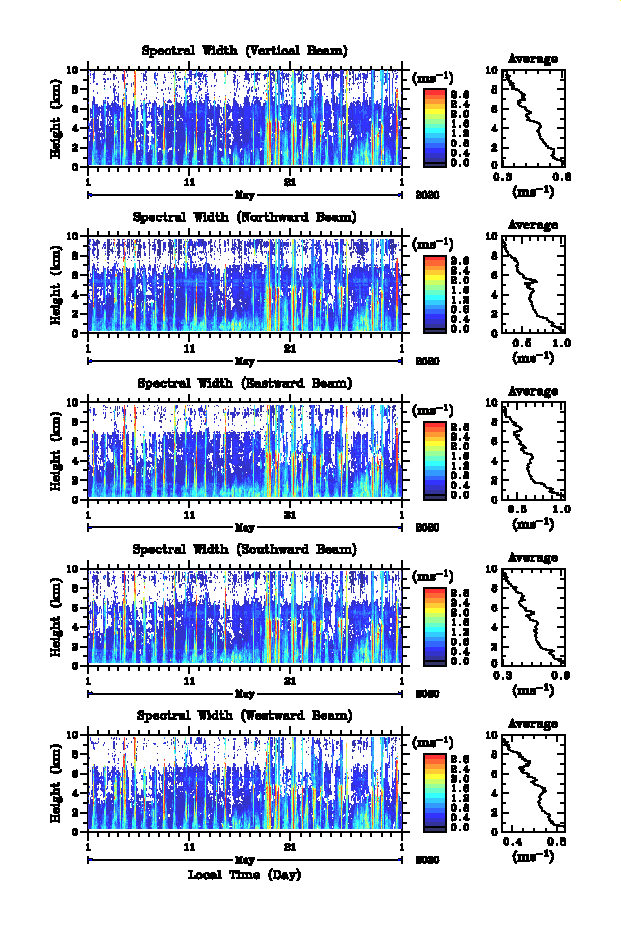

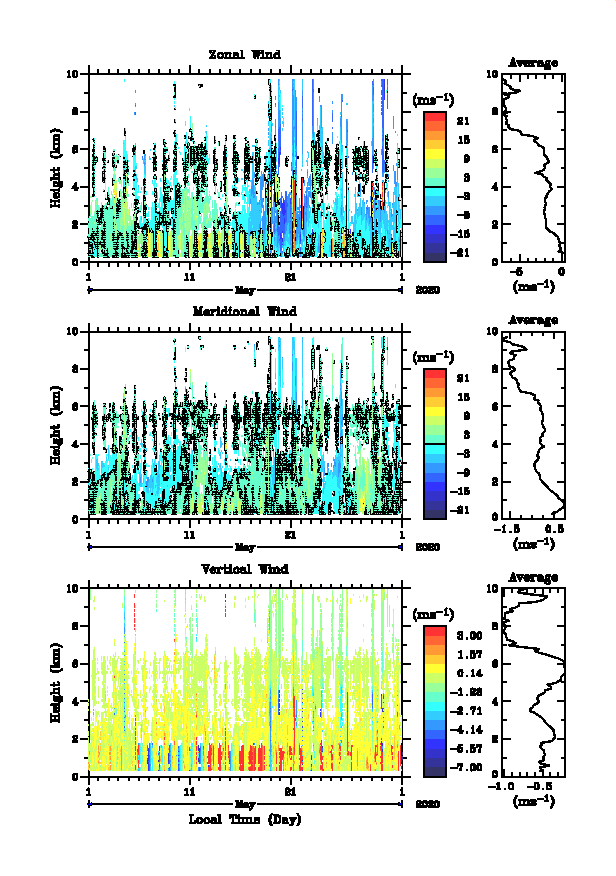

May, 2020

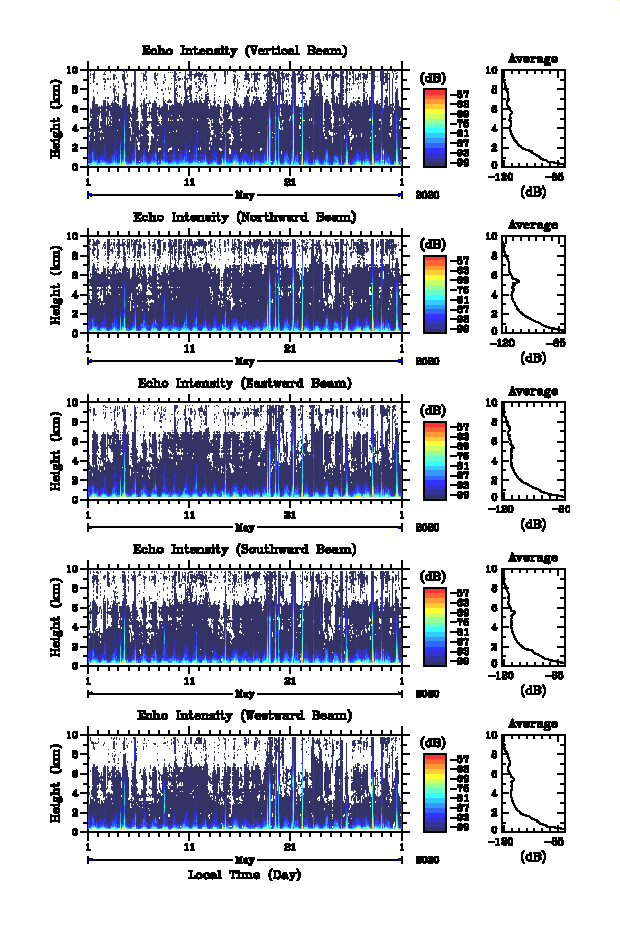

GIF File: Winds , Echo intensity , Spectral width

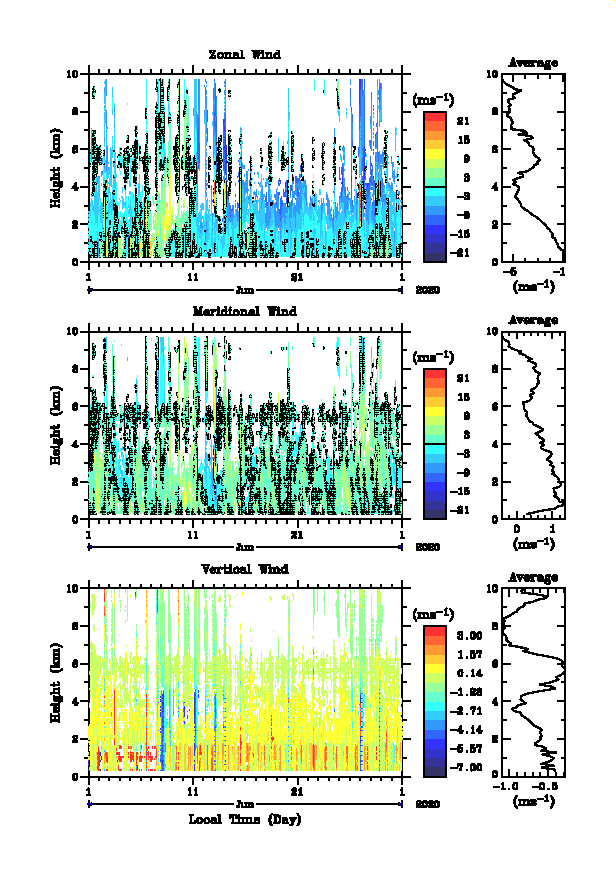

June, 2020

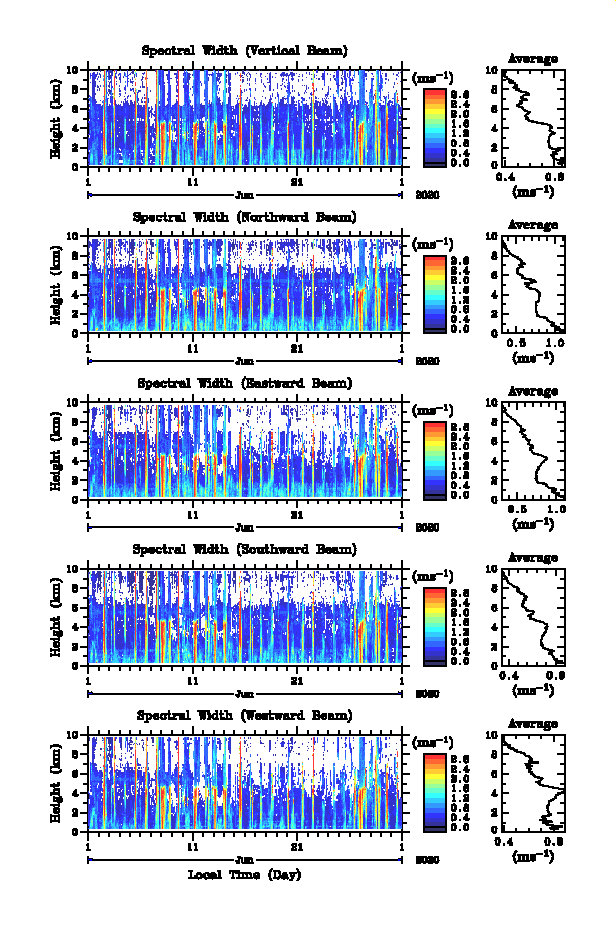

GIF File: Winds , Echo intensity , Spectral width
July, 2020

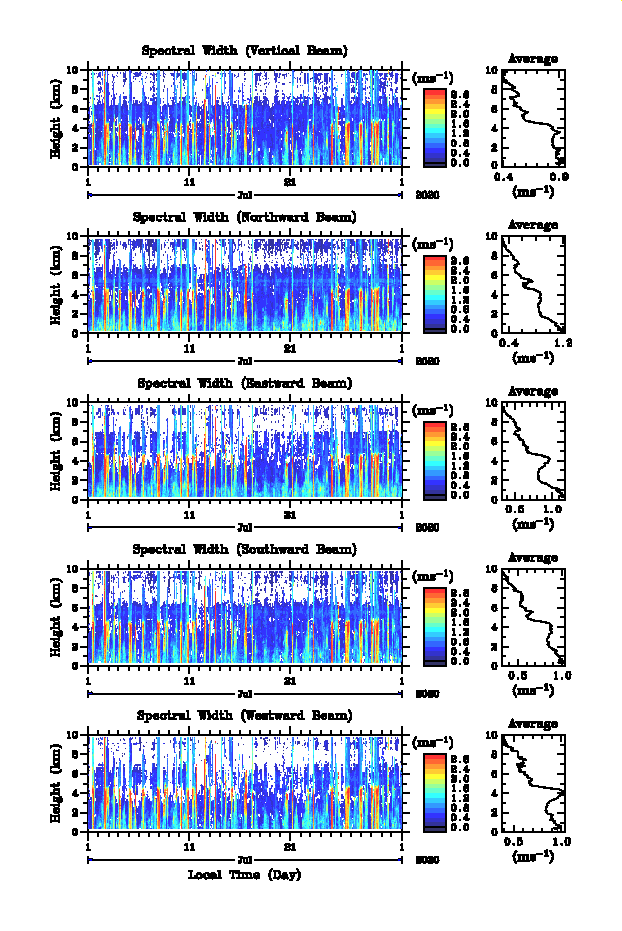

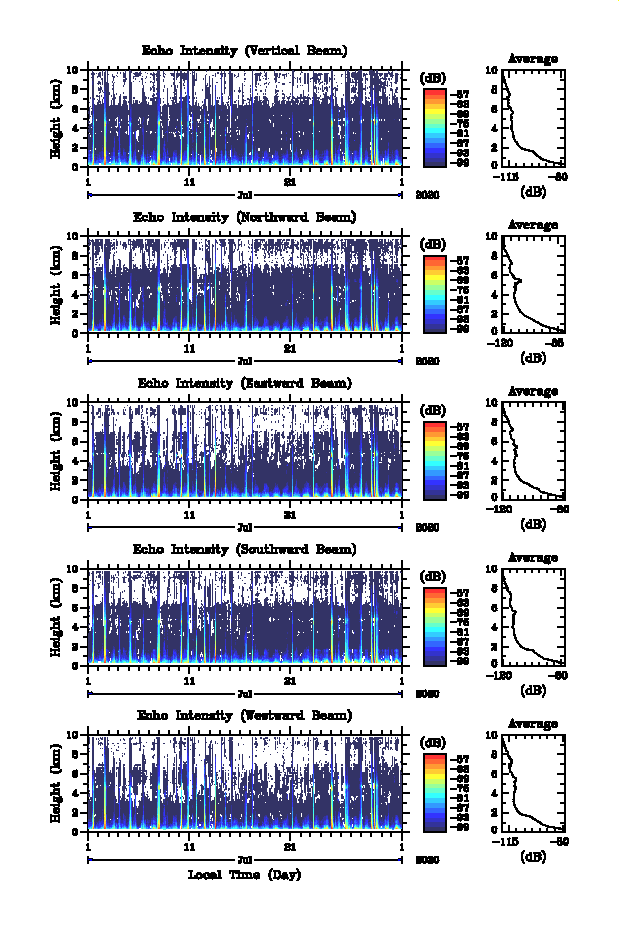

GIF File: Winds , Echo intensity , Spectral width
August, 2020

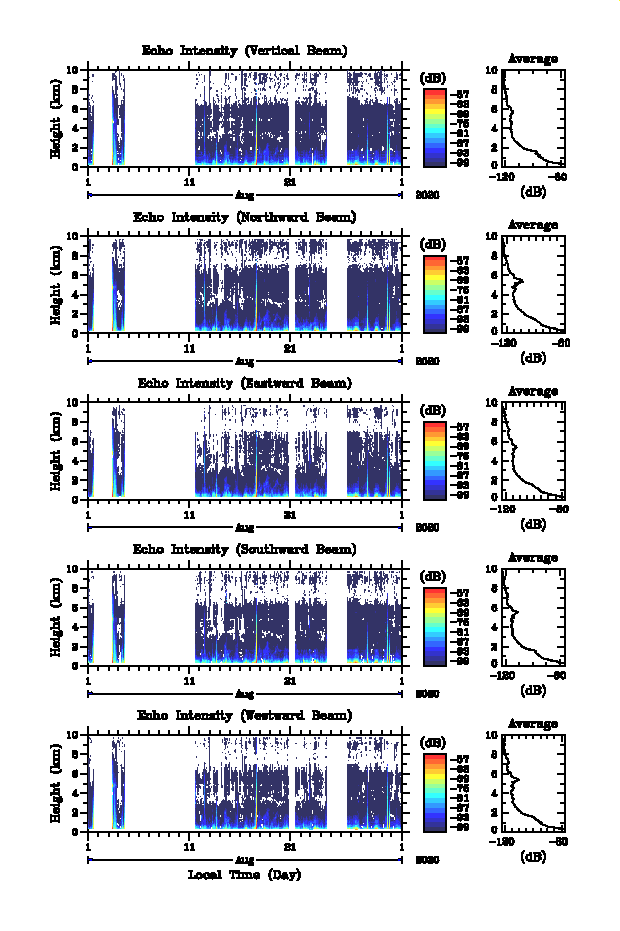

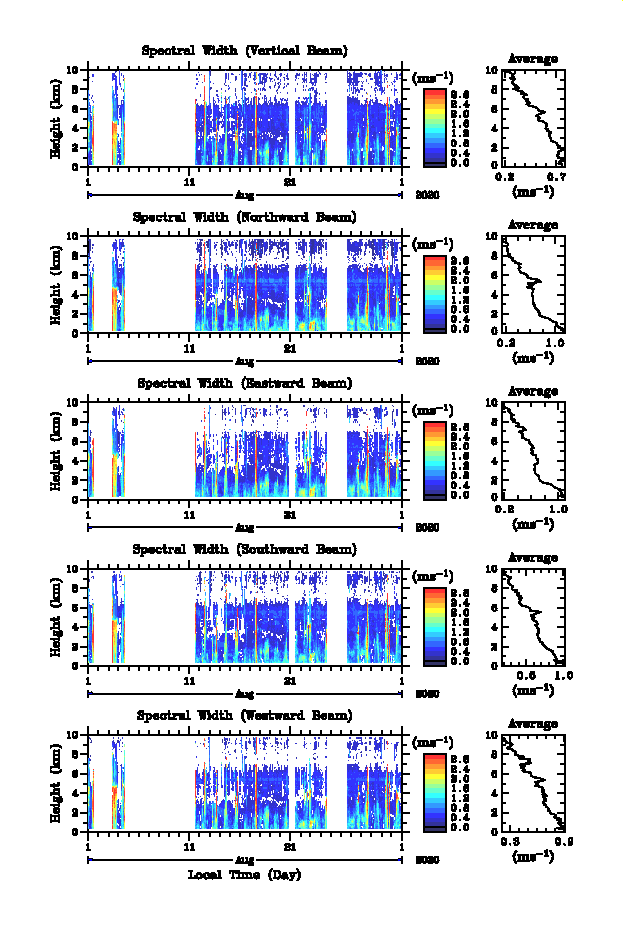

GIF File: Winds , Echo intensity , Spectral width

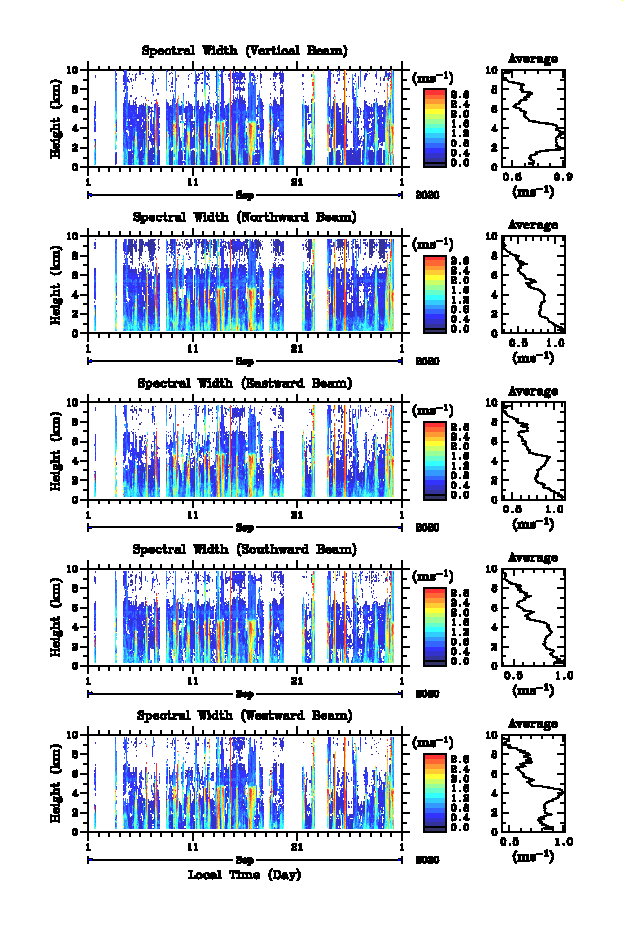

September, 2020

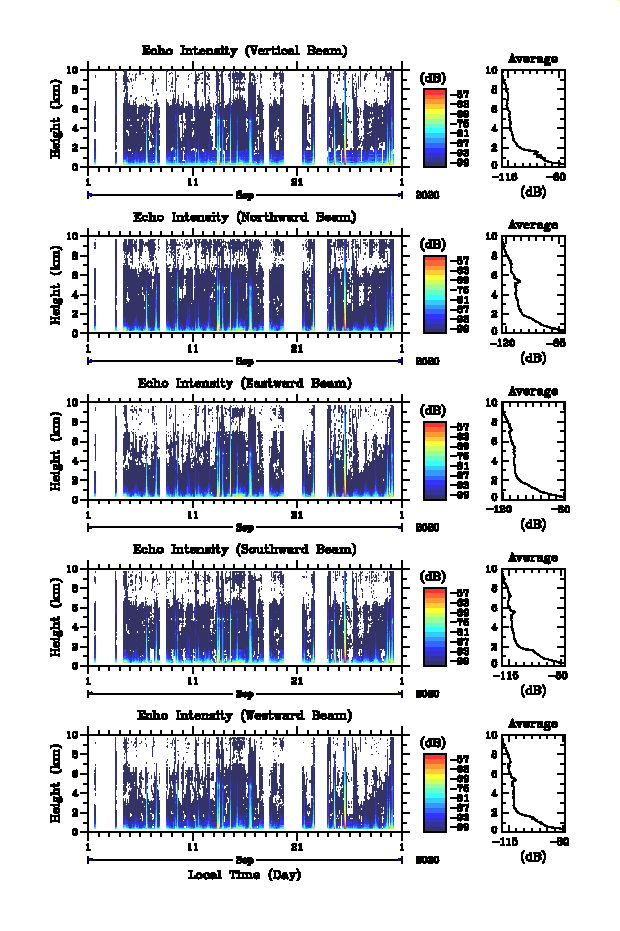

GIF File: Winds , Echo intensity , Spectral width
October, 2020

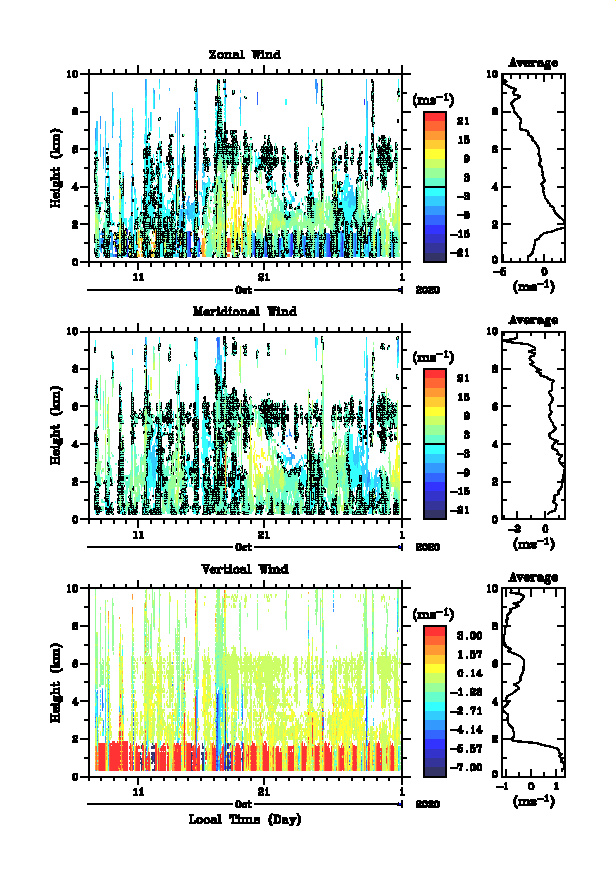

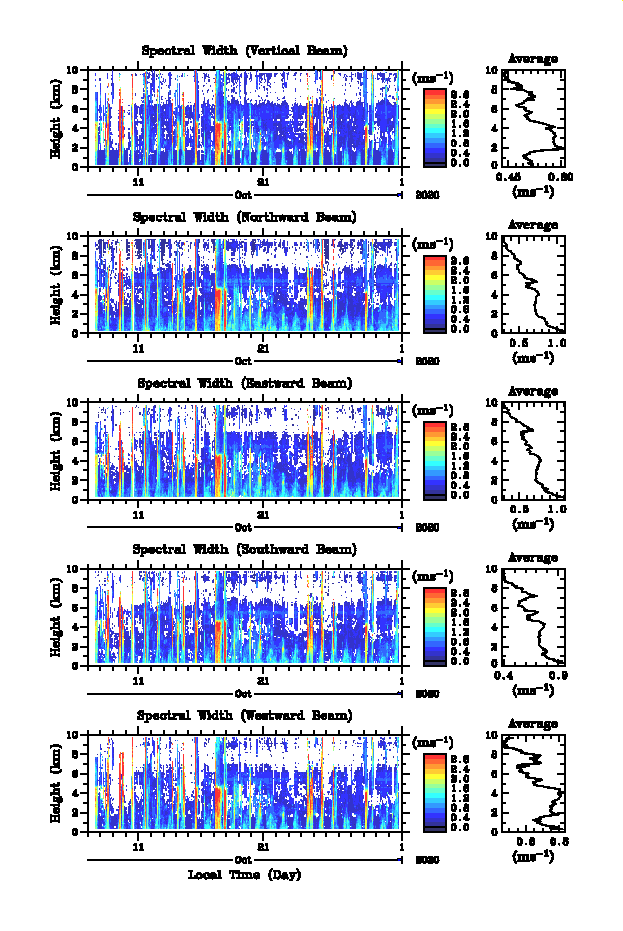

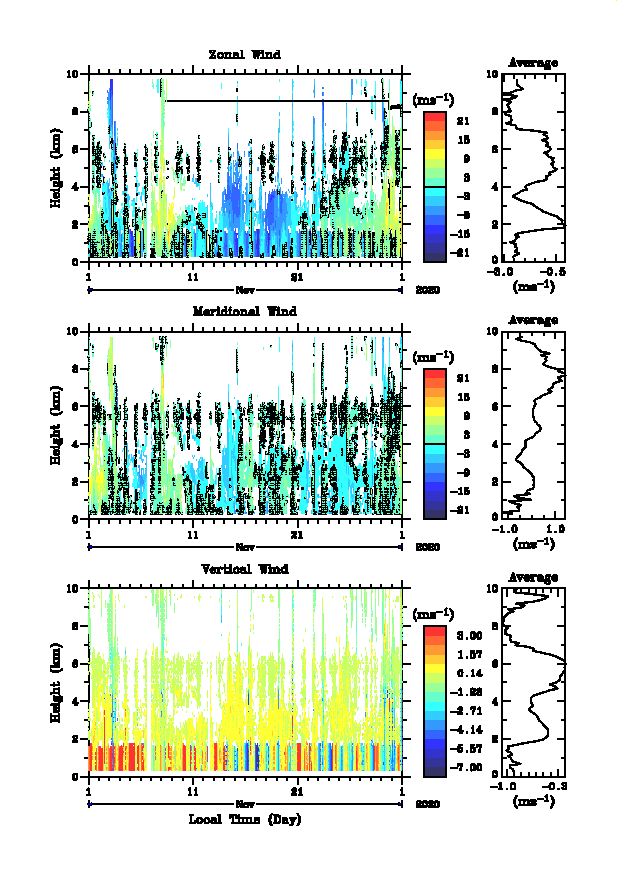

GIF File: Winds , Echo intensity , Spectral width
November, 2020

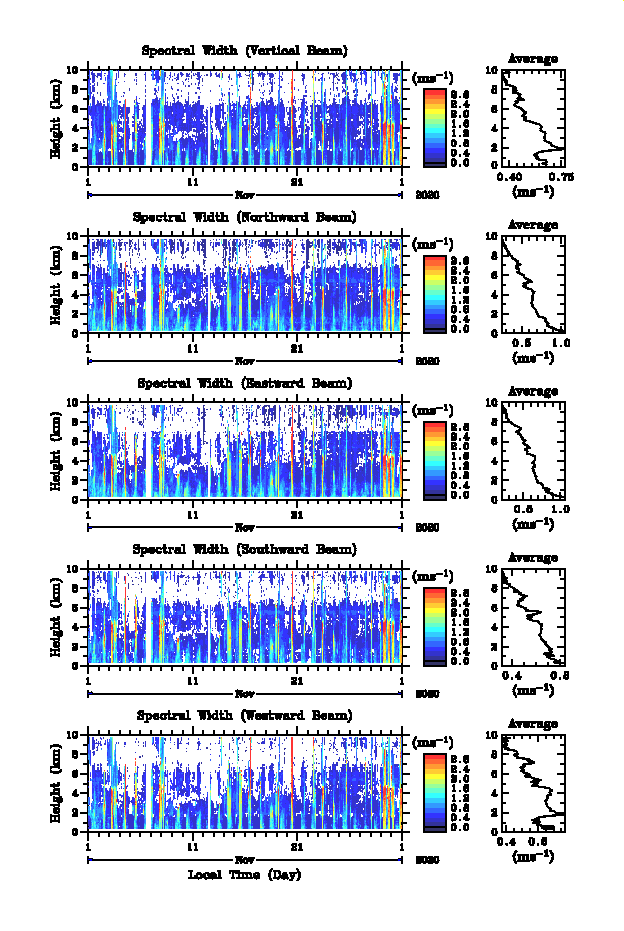

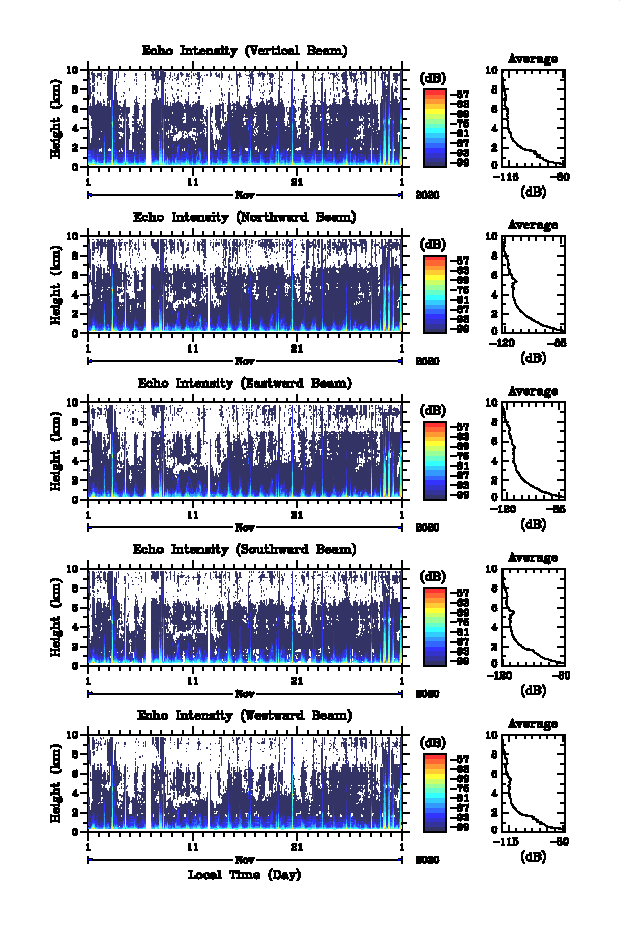

GIF File: Winds , Echo intensity , Spectral width
December, 2020

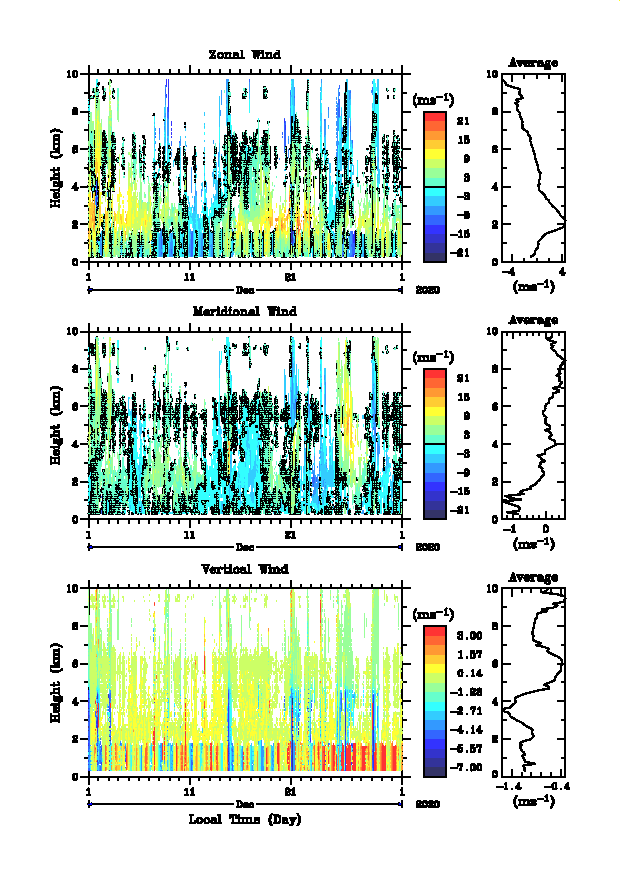

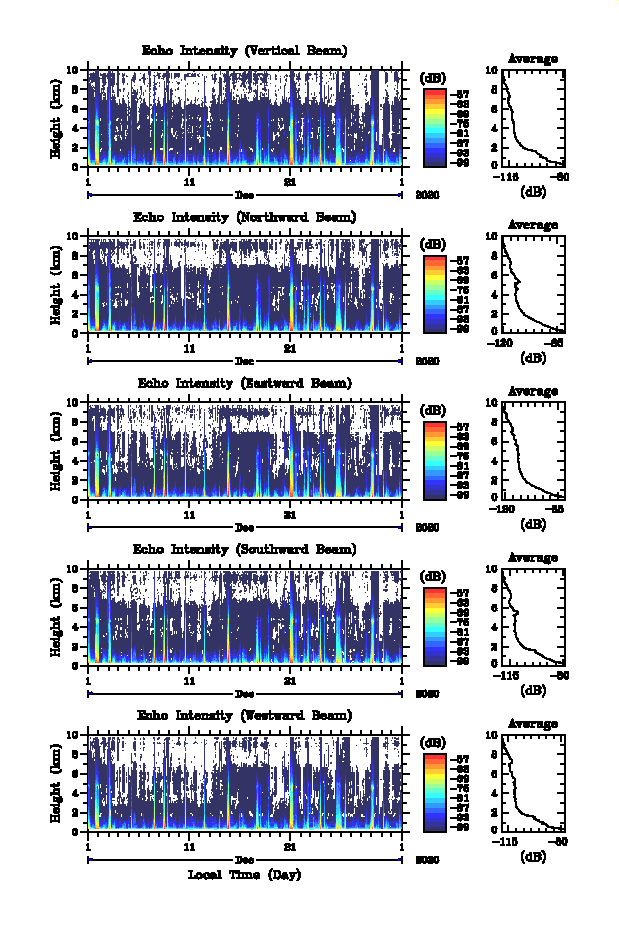

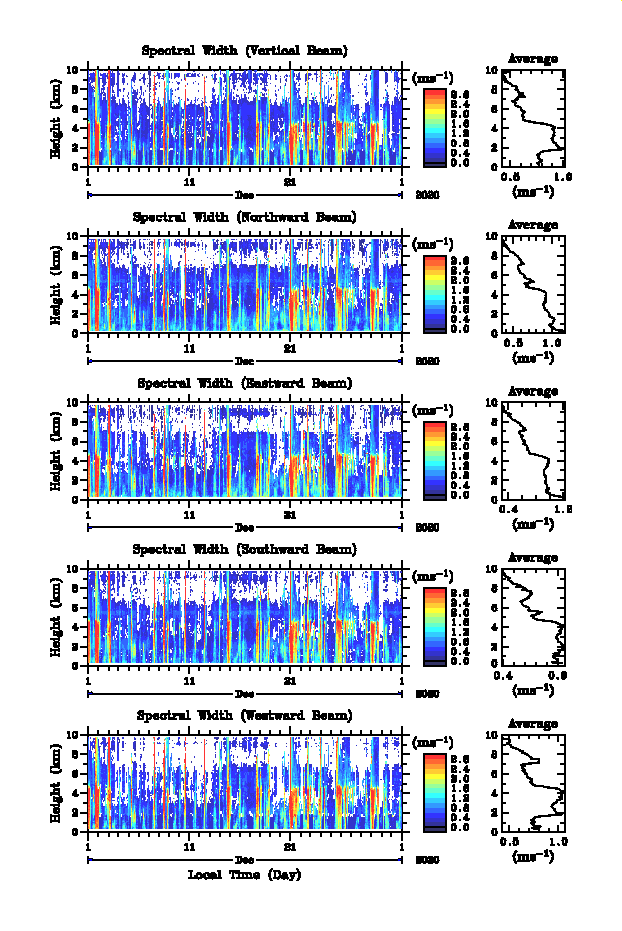

GIF File: Winds , Echo intensity , Spectral width

January, 2021

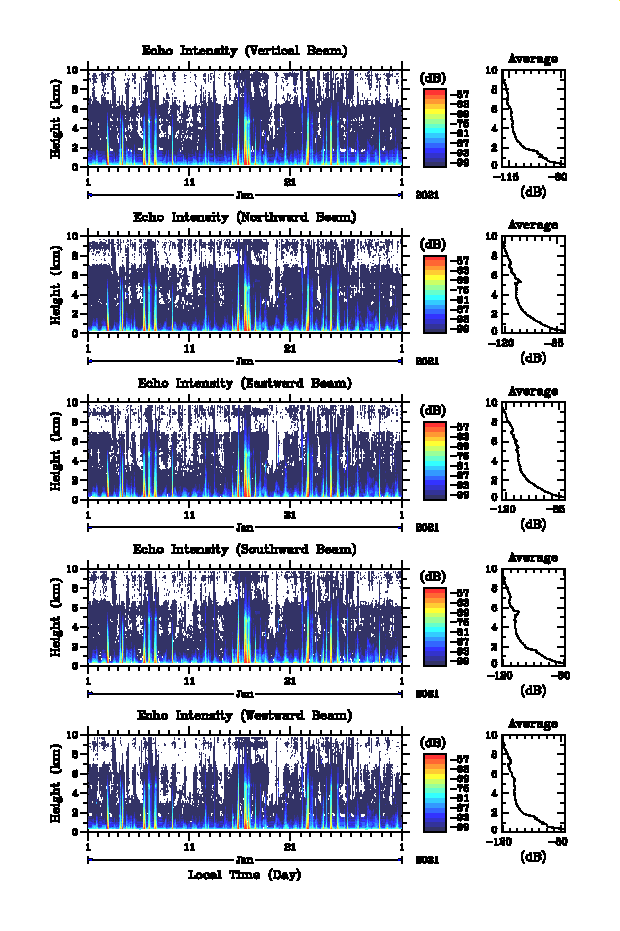

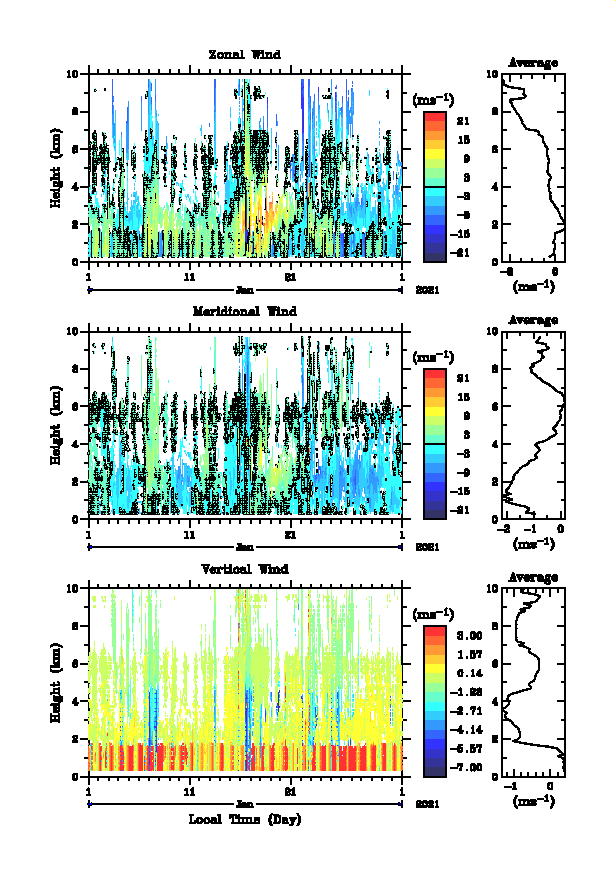

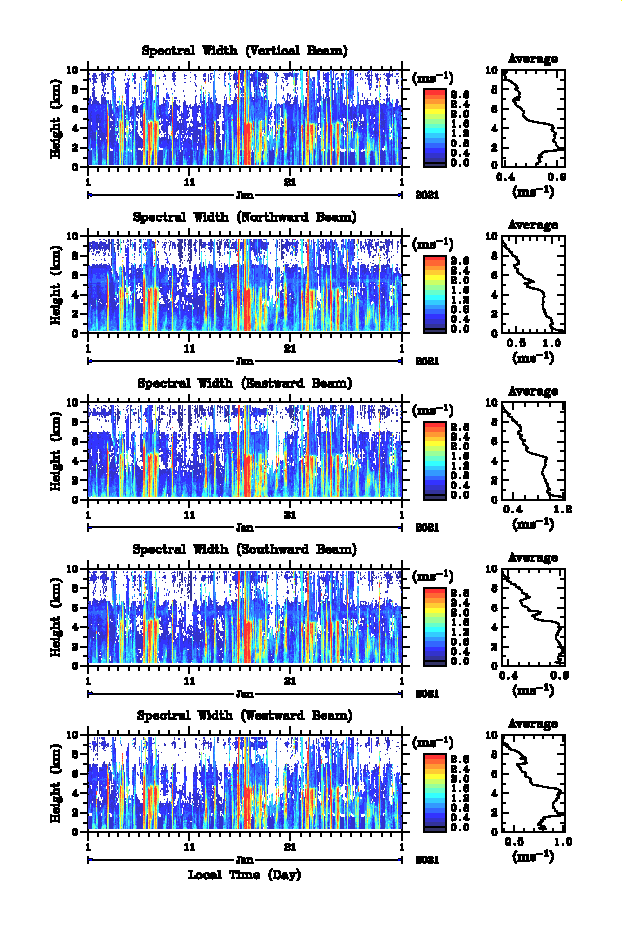

GIF File: Winds , Echo intensity , Spectral width
February, 2021
GIF File: Winds , Echo intensity , Spectral width

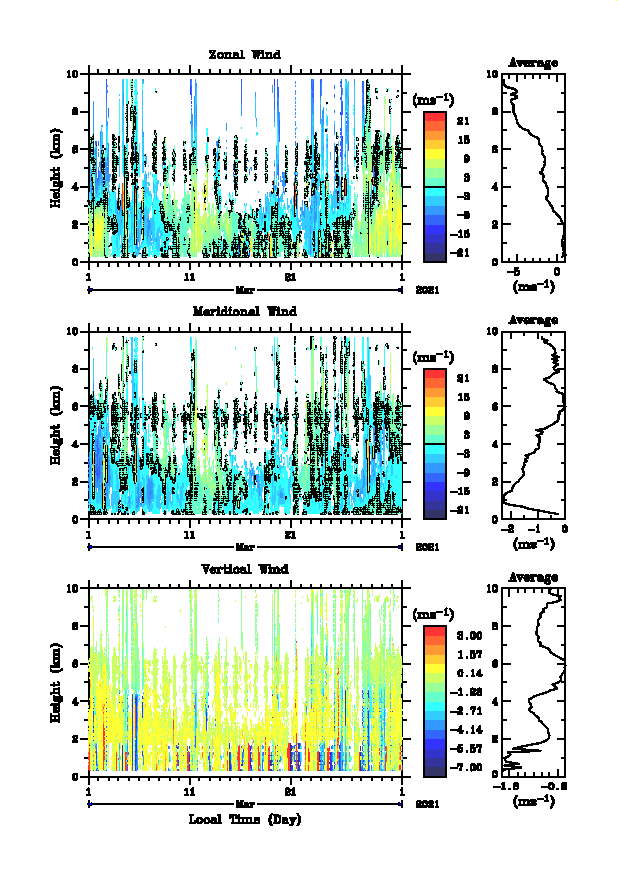

March, 2021

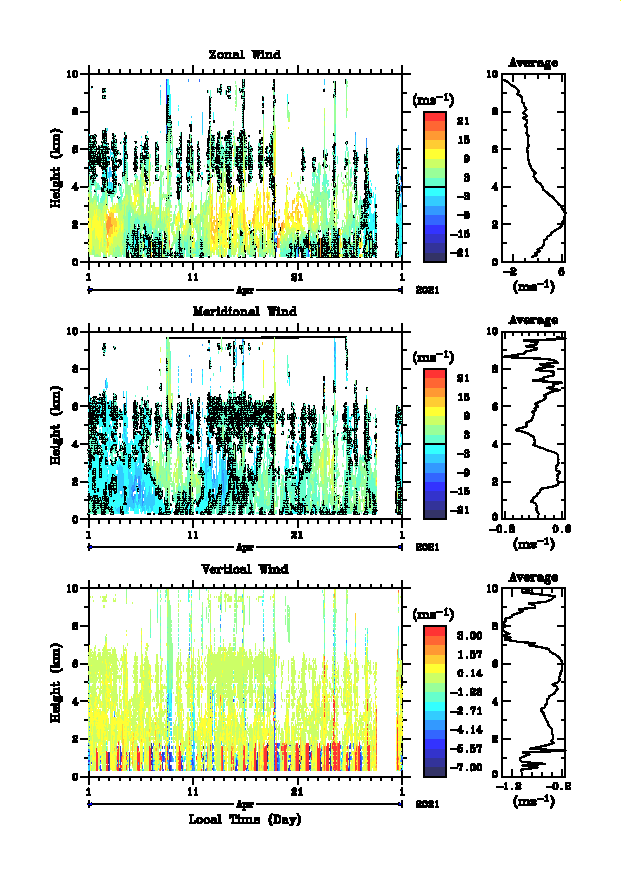

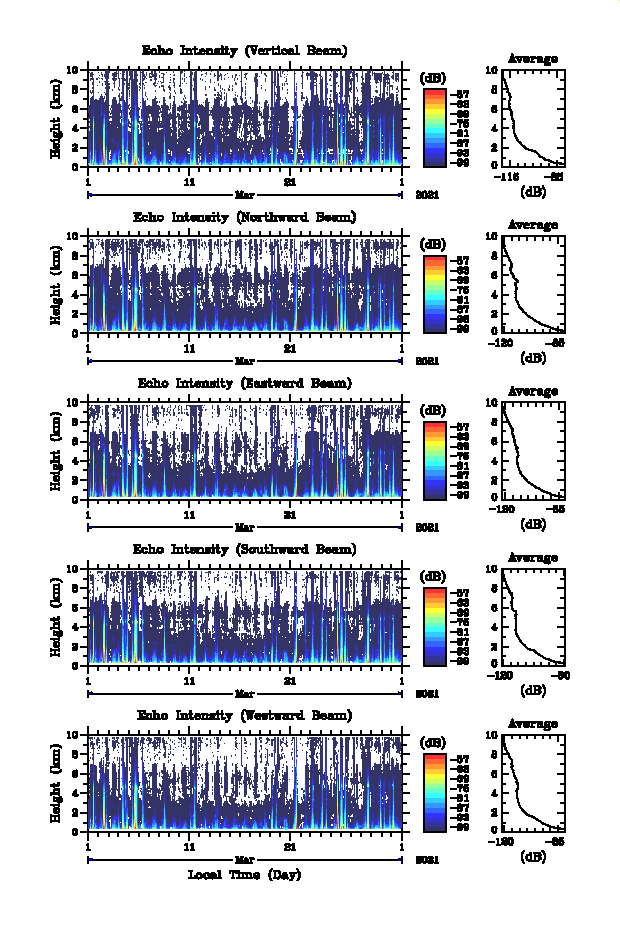

GIF File: Winds , Echo intensity , Spectral width

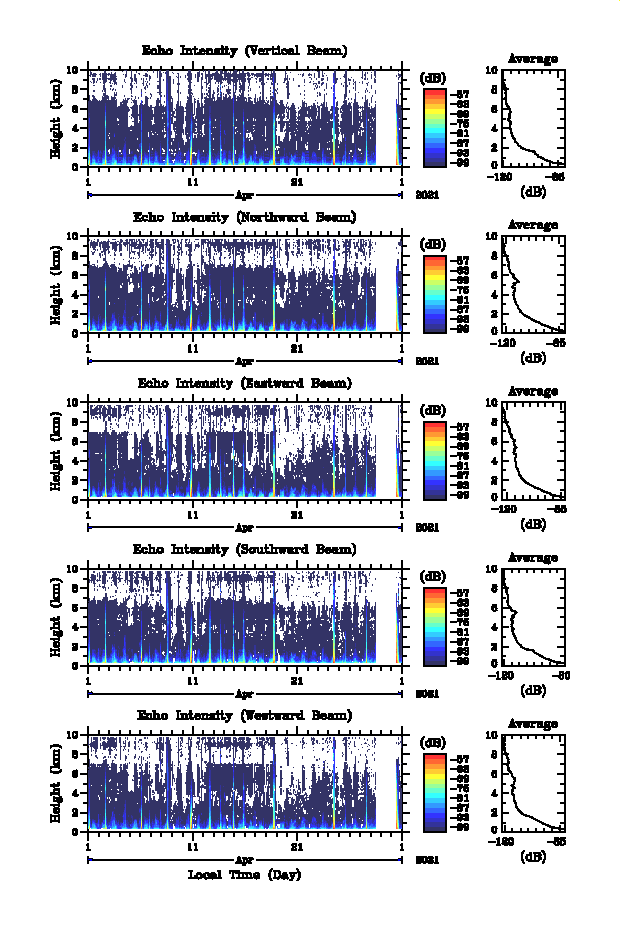

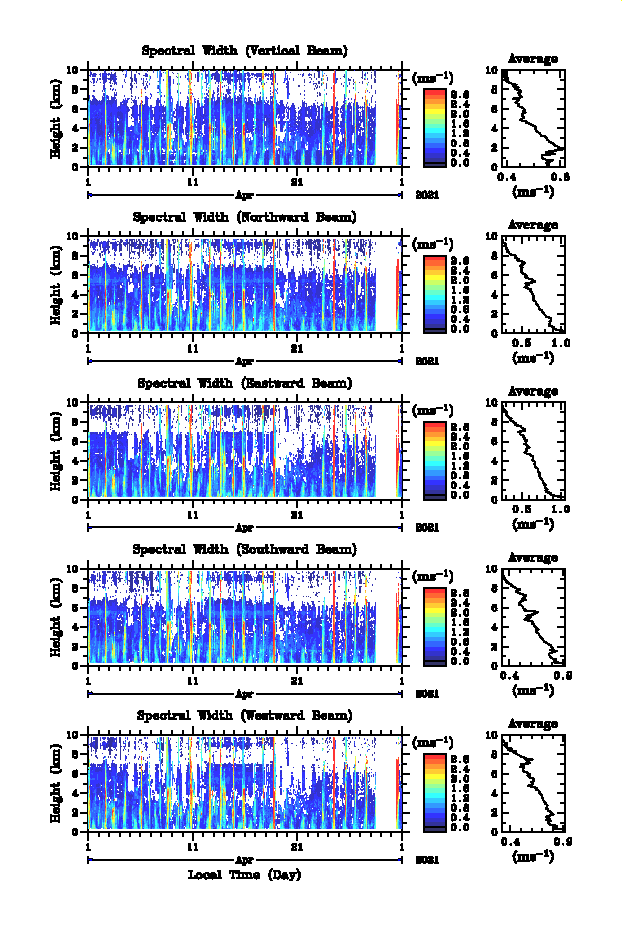

April, 2021
GIF File: Winds , Echo intensity , Spectral width
